KINGREAL Open Cell Ceiling Production Line - full-automatic type with components from industry-leading brands, it can produce standard cell ceilings or be customized to produce specific products. This production line contains following machines: Combined decoiler and straightener, high-speed punching press, Servo feeder, Main roll forming machine, Product output table and Electrical control system.
The open grid ceiling production line is compatible with pre-painted metal coils including aluminum or Gi steel coils. It can produce different sizes of open cell ceilings by changing molds including U10 standard or other requirements from clients. It provides a full solution for open cell ceilings decoiling, punching and roll forming.
This open cell ceilings making machine is successfully installed in many countries, won joint praise from our clients globally. For the good quality itself - quick material decoiling and straightening, precision and customizable hole punching, precision main roll forming and product cut to length.
For more information of this production line, check form below:
|
Machine Part |
Item |
Specification |
|
Material decoiling |
Motor Power |
380V 0.75KW |
|
Max. Loading Weight |
1Ton |
|
|
Max inner Diameter |
520mm |
|
|
Min. Inner Diameter |
450mm |
|
|
Machine Frame Material |
Channel steel and welded steel |
|
|
Max. Material Width |
200mm |
|
|
Operation Method |
Manual |
|
|
Punching press |
Punching Method |
Hydraulic Punching |
|
Hole distance tolerance |
±0.03mm |
|
|
Other Tolerance |
±0.3mm |
|
|
Material Feeding Method |
Feed drive servo motor |
|
|

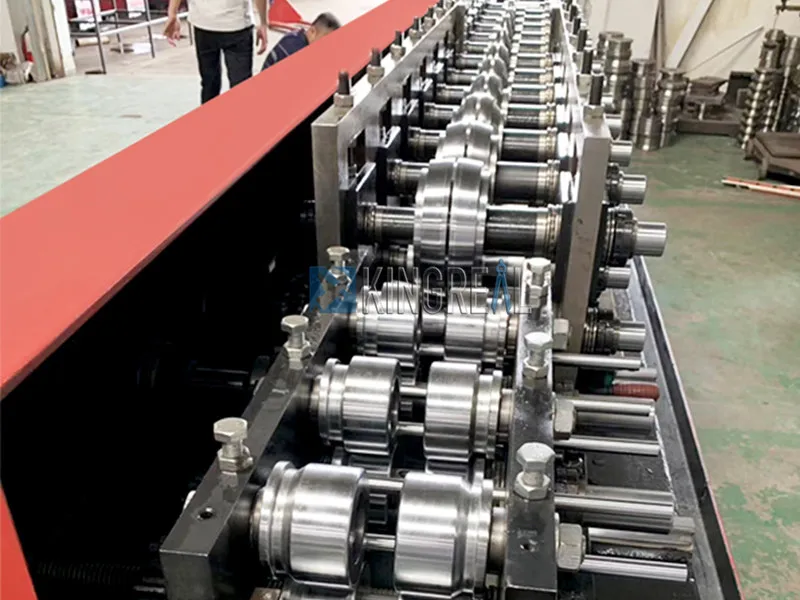

Roll forming machine |
Side Panel Type |
Wall Panel |
|
Motor Power |
380V 5.5KW |
|
|
Material of Roller |
Cr12 |
|
|
Side panel thickness |
22mm |
|
|
Reducer |
3# Cycloid Round |
|
|
Machine Frame Material |
Channel steel |
|
|
Roller set |
12 set |
|
|
Roller Diameter |
38mm |
|
|
Drive Model |
Gear |
|
|
Roller Material |
Aluminum Material 0.6mm |
|
|
Cutting and material collecting part |
Cutting Device |
Hydraulic Track CTL |
|
Length Fix Method |
PLC |
|
|
Cutting Model Material |
Cr12 MOV |
|
|
Cutting Method |
Hydraulic |
|
|
Material collecting table dimension (length*width*height) |
3M*0.7M*0.5M |
|
|
Material collecting method |
Manual collecting |
|
|
Machine Specification |
Control method |
PLC |
|
Production Speed |
7-12m/min |
|
|
Machine Dimension |
6*0.7 *0.7m(L*W*H) |
|
|
Gross Weight |
2.5 |
