The metal connector stamping press enables the efficient and stable mass production of precision metal connectors in various specifications.
Whether producing precision hooks and clips for open cell ceiling systems or load-bearing brackets and reinforced hangers for modern facade wall systems, the mass production of these core metal connectors relies on the comprehensive capabilities of the metal connector stamping machine—including stamping, bending, forming, and embossing.
What is a Metal Connector Stamping Press?
The core operating principle of the metal connector stamping press involves processing large metal coils through automated systems for uncoiling, leveling, and feeding.
The material then undergoes precision stamping to be formed into standardized, high-precision finished connectors in a single operation.
To meet the demands of high-volume and complex connector production, the metal connector stamping machine can be equipped with specialized progressive dies. This enables multi-station collaborative operations within a single work cycle, allowing multiple processing steps to be completed simultaneously and significantly streamlining the production workflow.

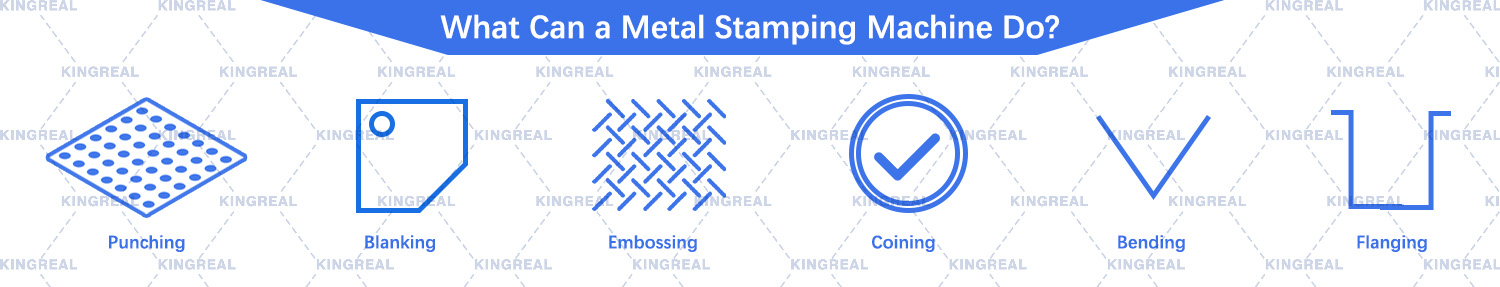

Equipped with progressive dies, the metal connector stamping press can execute multiple processing techniques concurrently, including:
1. Stamping: The press performs high-speed stamping with precise positioning to create various connection holes. The resulting holes are clean and burr-free, ensuring suitability for precision assembly.
2. Bending: Based on product design specifications, the press precisely bends sheet metal into complex support geometries—such as L-shapes, U-shapes, and Z-shapes—to meet the assembly requirements of diverse architectural components.
3. Embossing and Flanging: Through precise pressure control, the metal connector stamping machine performs surface embossing and edge flanging. These processes effectively enhance structural strength, increase contact surface area, and improve assembly stability.
4. Forming: Utilizing high-precision stroke and pressure control, the metal connector stamping press corrects dimensional deviations, ensuring the finished product perfectly adheres to design specifications and geometric standards.

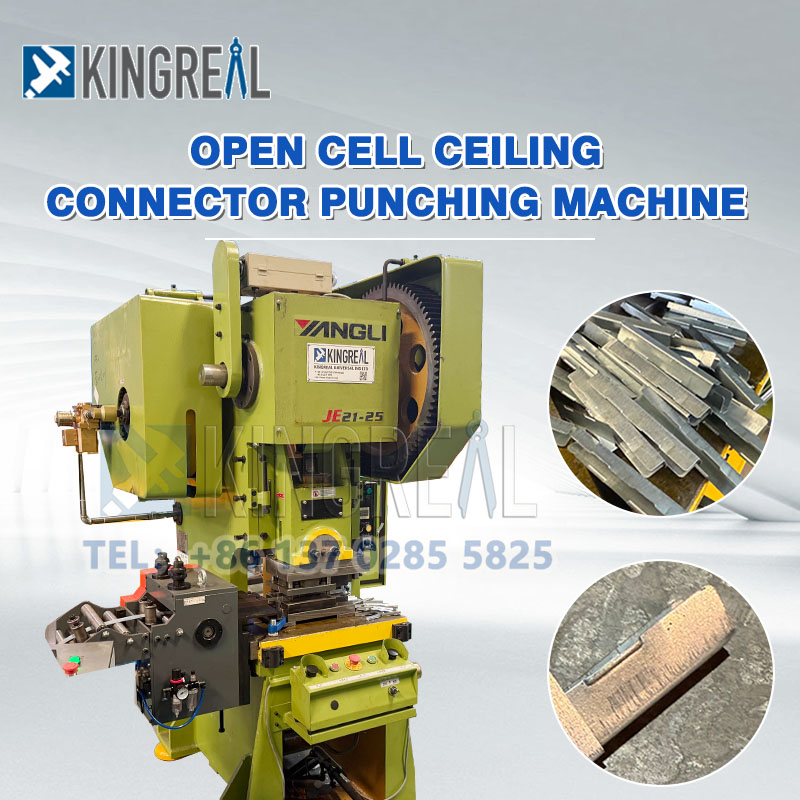

Metal Connectors in Open Cell Ceiling Systems
The overall load-bearing capacity and joint tightness of grilyato ceilings depend entirely on the interlocking precision of the cell connectors; only the precision stamping process of a metal connector stamping machine can meet these rigorous assembly requirements.
Regarding high-precision structural fit, the main and cross tees of the open cell ceiling interlock via specialized clips, demanding extremely tight dimensional tolerances for the connectors.
Metal connector stamping machine controls dimensional deviations in stamped parts, ensuring uniform specifications across all connectors. Connectors produced this way guarantee straight ceiling lines and uniform, secure joints after assembly, effectively preventing quality issues such as deformation, detachment, or excessive gaps.

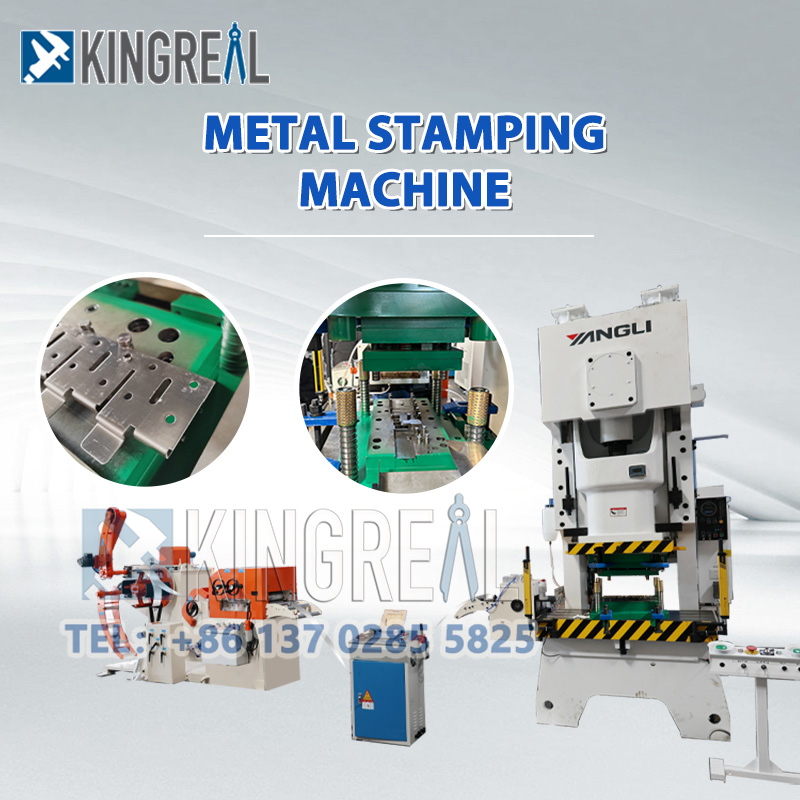

Utilizing dedicated progressive dies, the metal connector stamping press enables automated, continuous production. It automatically feeds aluminum alloy or galvanized steel coils at a constant speed and completes the entire process—including punching, cutting locking tabs, precision bending, and final shaping—in a matter of seconds.

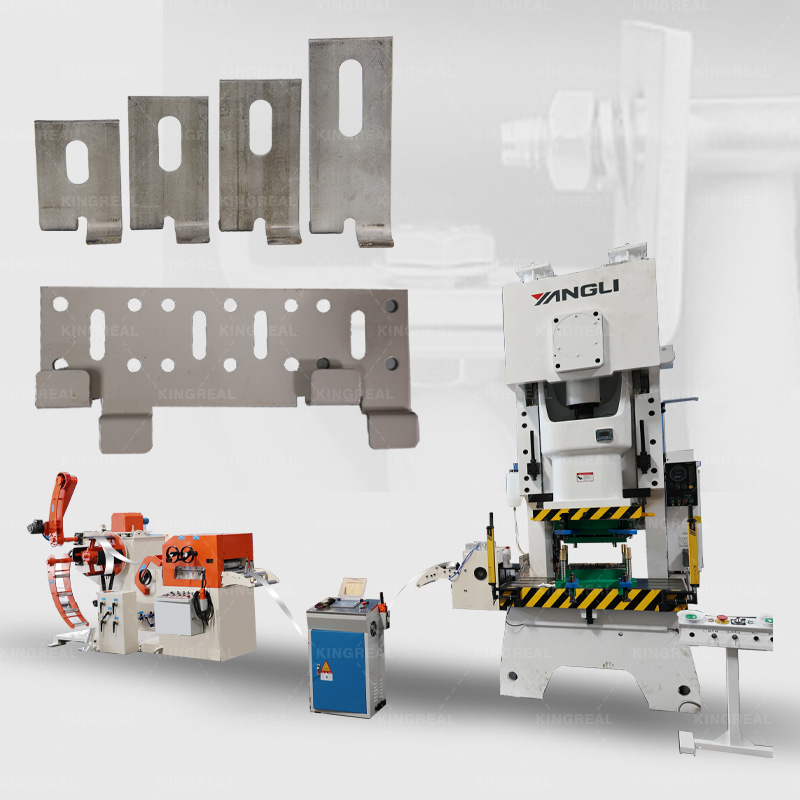

Metal Connectors for Facade Wall System
Metal connector stamping machines are primarily used for the precision forming of large facade mounting brackets, stiffener connectors, and positioning supports.
With powerful stamping force and stable forming performance, these metal connector stamping presses are perfectly suited for processing thick materials. Through multi-step bending and stiffener embossing processes, the resulting metal connectors are structurally robust and highly load-bearing; they stably support the weight of facade panels while resisting lateral tensile and compressive forces caused by strong winds.
Additionally, the metal connector stamping machine enables the single-stage forming of functional structural features. Standard adjustment slots and anti-slip teeth can be embossed directly during the stamping process, completing all structural fabrication in one pass without the need for secondary processing.

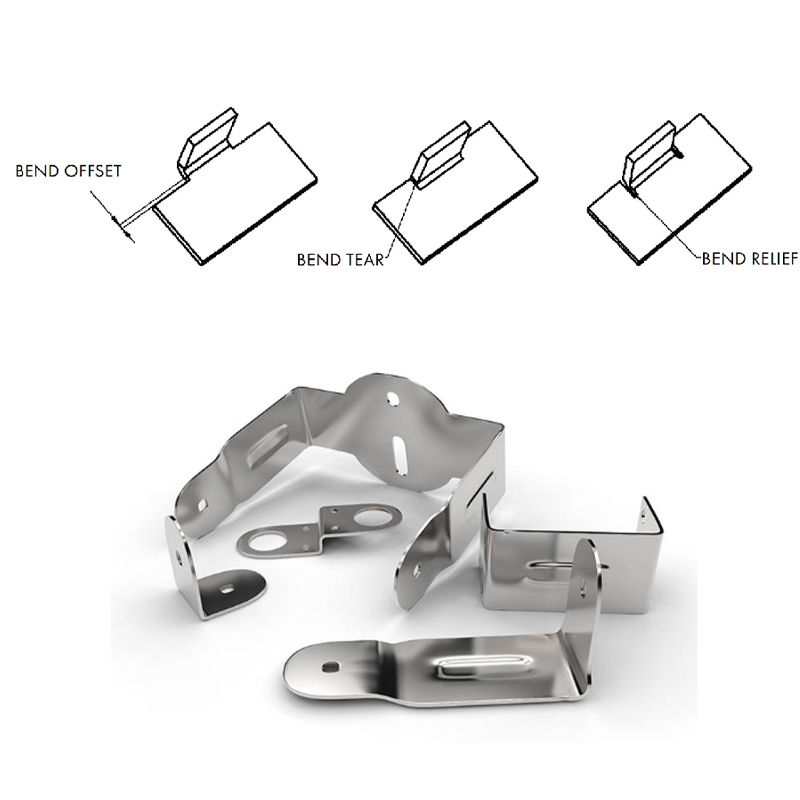

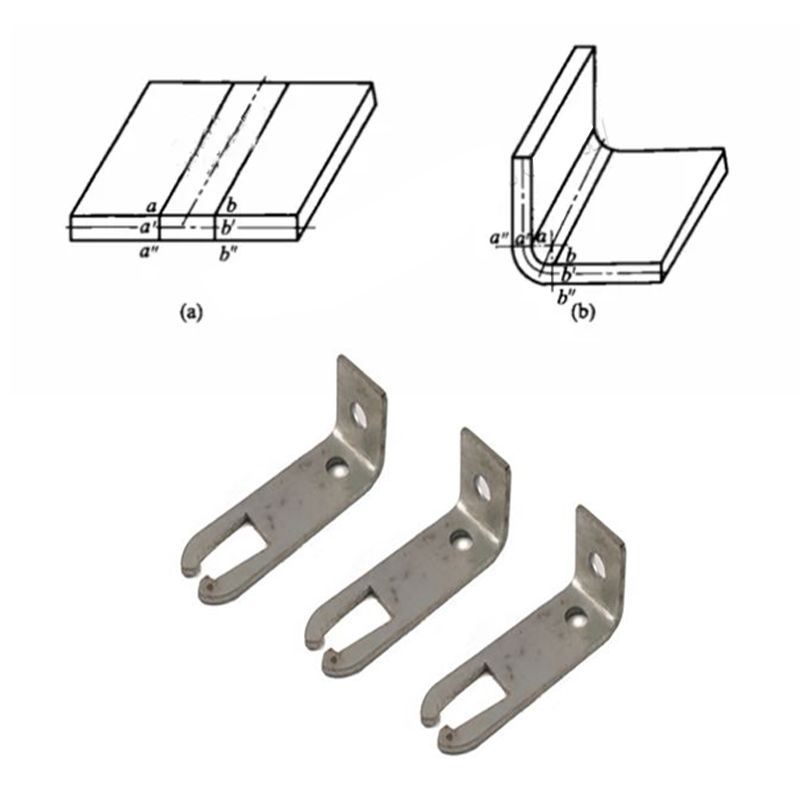

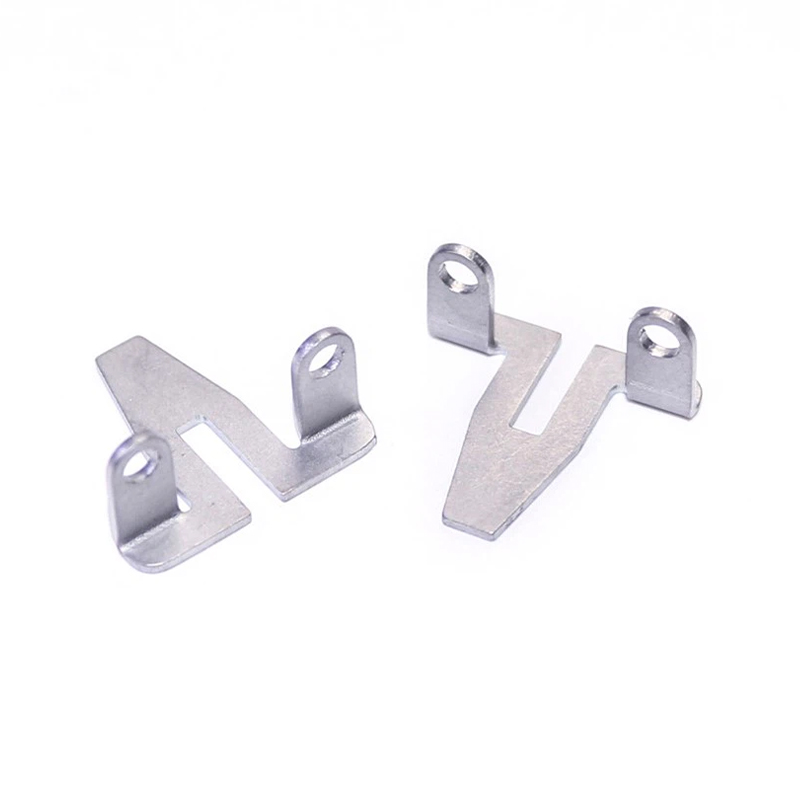

Drawings About More Metal Connectors
Characteristics of Metal Connector Stamping Press
1
Excellent reverse load control performance
High-quality metal connector stamping presses feature high-performance hydraulic control systems and mechanical damping/cushioning systems.
These effectively counteract the reverse impact forces generated during stamping, preventing wear on progressive dies caused by pressure overloads or uneven impact loads.
Stable reverse load control not only ensures smoother metal connector stamping press operation but also significantly extends the service life of the associated tooling.
2
Exceptional feeding precision and synchronization
Equipped with high-precision servo feeding systems, these metal connector stamping machines achieve seamless synchronization between feeding, stamping, and forming actions.
Precise control over the feed stroke eliminates issues such as hole misalignment or forming errors, ensuring that every finished metal connector meets strict precision standards.
3
Superior tolerance control and repeatability
High-end metal connector stamping machines utilize specialized motion coupling interfaces and intelligent control systems to deliver ultra-high repeatability, ensuring consistent stroke, pressure, and positioning parameters across every stamping cycle.
These metal connector stamping presses enable high-volume, standardized production, guaranteeing uniformity in dimensions, structure, and performance across batches—perfectly meeting the core requirements of modern construction projects for standardized, high-quality connectors.
