Sheet Metal Perforation Machine

1/ How to Perforate Sheet Metal?

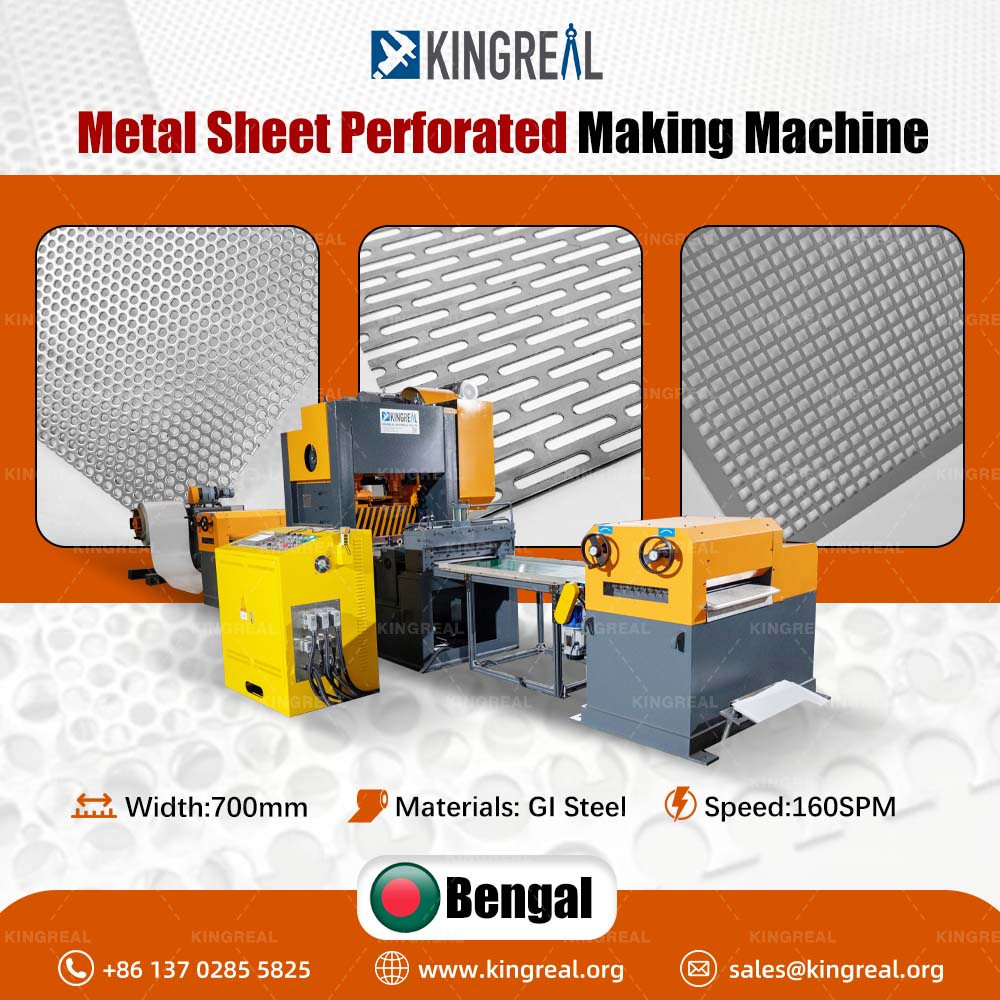

A metal perforated making machine is designed to punch different holes in the surface of materials, and is widely used in various metal processing industries. A metal perforated making machine mainly consists of precision components such as a decoiler, a leveling machine, and a punching machine. The entire punching process includes several key steps: uncoiling, leveling, and punching. First, the decoiler is responsible for gradually unfolding the large roll of material. Then, the uncoiled metal material is fed into the leveling machine for straightening. Finally, after the metal sheet is leveled, it enters the punching machine for the final punching operation. During this process, the punch quickly presses down, penetrating the metal material and forming multiple holes. By changing different punching dies, it is possible to punch holes of different sizes and shapes to meet the needs of different industries.

2/ What is the Use of a Metal Perforated Making Machine?

The main purpose of a metal perforated making machine is to punch different hole types or diameters on the surface of metal materials. Based on different customer needs for the punching process, KINGREAL CEILING MACHINERY can provide metal sheet perforated machine, coil to coil perforation line, and metal ceiling tile perforation line. Common types of metal perforated making machines on the market include: ●Turret punch press, a high-end segment of CNC punching machines, equipped with a multi-station turret tool magazine that can pre-install dozens of different specifications of dies. During processing, dies can be quickly switched without stopping the machine, enabling continuous punching of various hole types, significantly improving the efficiency of multi-variety, medium-to-large batch production, and is widely used in processing scenarios such as automotive parts and home appliance casings. ●Hydraulic punching machine, which uses a hydraulic system as the power source, providing strong and stable punching force, and can easily process thick plates (3–20mm), high-strength steel, and pipes. It is available in desktop and portable versions; the desktop version is suitable for heavy-duty batch processing in factories, while the portable version is suitable for on-site construction scenarios such as steel structure curtain walls and scaffolding. ●Pneumatic punching machine, driven by compressed air, is lightweight, inexpensive, and easy to operate, with a fast punching speed. However, the punching force is limited, and it is only suitable for simple punching of ultra-thin metal sheets (0.1–1mm) or non-metallic sheets, and is often used in the processing of small parts such as electronic components and light industrial ornaments.

3/ What is the Cost of a Metal Perforated Making Machine?

The price of the metal perforated making machine is closely related to the specific solution. KINGREAL CEILING MACHINERY will provide customized steel perforated machines based on the customer's actual project needs. Therefore, the price of each metal perforated making machine varies.

●Metal perforated making machine solution: KINGREAL CEILING MACHINERY will provide customized steel perforated machines based on the customer's actual project needs, rather than a one-size-fits-all standard metal perforated making machine. The specific solution will be designed to maximize production efficiency.

●Additional accessories: In addition to the basic steel perforated machine components, some additional accessories can be considered, such as feeding trolley, unloading trolley, and metal sheet cleaning machine. These additional devices can effectively improve the level of automation, reduce labor costs, and maintain the cleanliness of the processed material surface.

●Processing materials: The price difference of different processing materials will also affect the cost of the metal perforated making machine. For example, the material type, thickness, width, and weight will all affect the specific parameter design of the decoiler, leveling machine, and punching machine. If the customer needs to process multiple materials, KINGREAL CEILING MACHINERY will design a steel perforated machine that meets the characteristics of these materials.

●Punching dies: The number and manufacturing difficulty of punching dies directly affect the price of the metal perforated making machine. If the customer has multiple punching requirements, KINGREAL CEILING MACHINERY engineers will design each punching die based on detailed drawings. The complexity and manufacturing difficulty of the die design will significantly affect the overall cost.

4/ Can Hole Shapes and Sizes be Customized?

Absolutely. KINGREAL CEILING MACHINERY will fully customize the punching dies according to the customer's punching requirements. Whether it's common hole shapes (round hole, long round hole, square hole, triangle hole, diamond hole, hexagonal hole, crossed hole) or special hole shapes, the KINGREAL CEILING MACHINERY steel perforated machine can perfectly produce them. In addition, the KINGREAL CEILING MACHINERY metal perforated making machine has achieved the ability to punch micro-holes as small as 1mm in diameter. The design and production of molds for manufacturing micro-holes are far more challenging than those for ordinary punching dies. Firstly, micro-aperture molds require high-quality materials with excellent wear resistance to ensure they are not easily damaged during the punching process. At the same time, KINGREAL CEILING MACHINERY engineers need to fully consider the impact of the micro-apertures on the overall strength and stability of the product. Secondly, the punching process demands extremely high precision; even minor errors can lead to product rejection. Therefore, the manufacturing and use of micro-aperture molds must be subject to strict quality control to ensure that every step of the punching process meets the required precision, ultimately guaranteeing the quality of the finished product.
