120X60CM Metal Ceiling Tiles Production Line
- KINGREAL CEILING MACHINERY
- China
Video Display About Metal Ceiling Production Line
Description of Aluminium Ceiling Machine

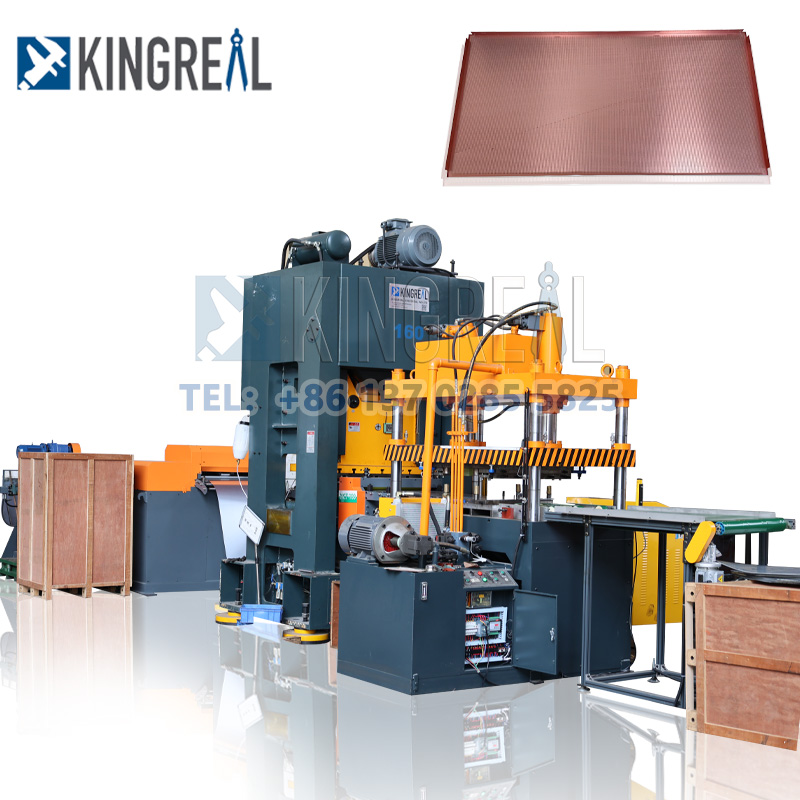

KINGREAL CEILING MACHINERY 600x1200mm Full-Automatic Metal Ceiling Production Line is one of KINGREAL CEILING MACHINERY most featuring products, it can produce both plain and perforated metal ceiling tiles according to customers' needs. Producing metal ceiling tiles by KINGREAL CEILING MACHINERY 60*120cm Metal Ceiling Machine, the ceiling tile surface is flat, the splicing is neat, the thick and thin materials can be adjusted, the equipment process is simple, and the operation is easy.
KINGREAL CEILING MACHINERY equips this metal ceiling machine with 3 presses for perforation, notching and bend forming. Each press comes with a quality hydraulic system. They provide precise perforation and corner cutting, final bending forming as per requirements. Clients can buy more molds for different types of metal ceiling tiles such as Clip-in, Lay-in and Tegular.
Working Process of Metal Ceiling Machine

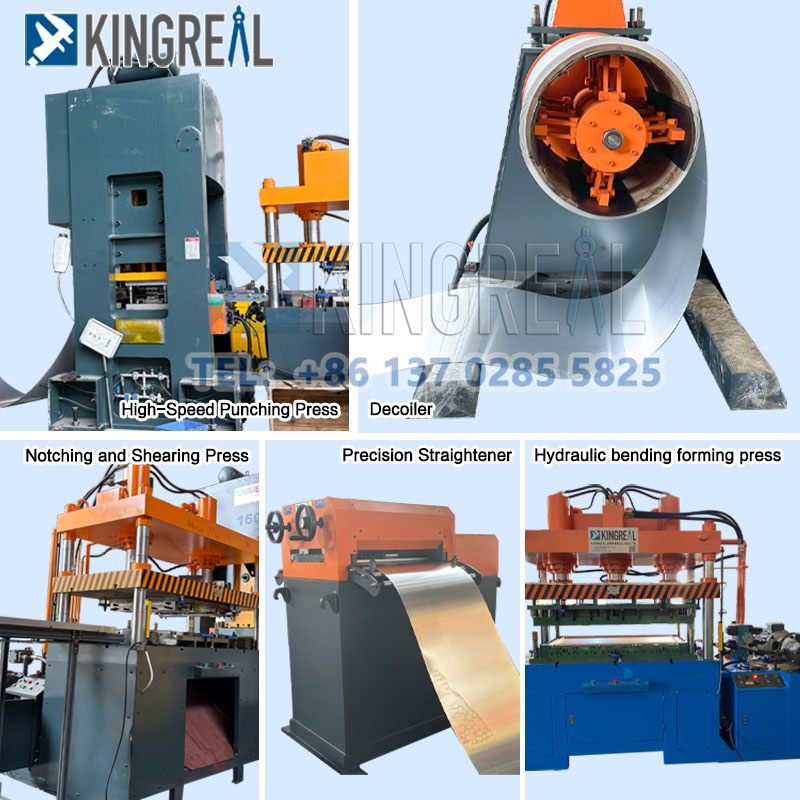

Decoiler - Straightener -- Servo Feeder -- Perforation Press -- Notching & Shearing Press Machine -- Bending Forming Press -- Metal Sheet Cleaning Machine -- Acoustical Ceiling Tile Textile Stick Machine
Other Optional Components
Automatic Cleaning Machine -- Fleece Gluing Machine -- Automatic Turn-over Machine -- Automatic Mechanical Arm -- Re-Straightener
The automatic cleaning machine can remove oil and rust on the surface of tiles, automatic turn-over machine and mechanical arm to transform ceiling tiles to final bend forming. All steps are done fully automatically, which can save labor costs and avoid unnecessary injuries.
Specification of Metal Ceiling Machine
| Machine | Features | Amount |
| Decoiler | Hydraulic expansion | 1 Unit |
| Pre-straightener | High-precision 19 Rollers | 1 Unit |
| 125 Tons high-speed perforation press | 125Tons, 100-150 SPM, 2-5PCS tiles/min | 1 Unit |
| NC servo feeding machine | Yaskawa Servo motor, 3.0KW High accuracy | 1 Unit |
| Hydraulic notching & shearing press | 60tons Hydraulic press, High accuracy | 1 Unit |
| Transmission conveyor | Automatic | 2 Unit |
| Precision straightener | High-precision 21 Rollers | 1 Unit |
| Automatic tiles flipping machine | For flipping 600*600 tiles 180 degrees | 1 Unit |
| Automatic feeding mechanical arm | For feeding 600*600 tiles to next step production | 1 Unit |
| Hydraulic bending forming press | For bending forming 600*600 tiles | 1 Unit |
| Electric control system | Reliable parts | 1 Unit |
Installation Drawing of Metal Ceiling Machine

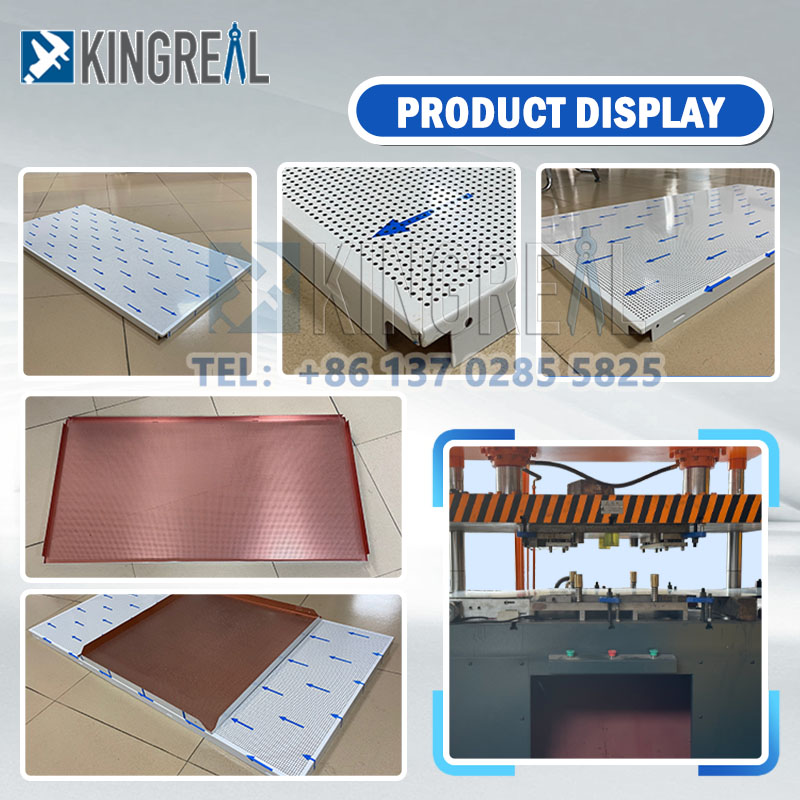

Different Size Products On Your Choice
Applications of Metal Ceiling Tile Production Line
KINGREAL CEILING MACHINERY metal ceiling tile production lines are widely used in spaces such as commercial buildings, transportation hubs, healthcare and educational facilities, as well as cultural and sports venues.
The metal ceilings produced by these metal ceiling tile production lines are durable, moisture-resistant, fire-resistant, and easy to clean. With their clean, refined aesthetic, they are frequently utilized in modern architectural design, helping to create spaces with a contemporary feel.
How is Metal Ceiling Tile Production Line Quality Ensured?
KINGREAL CEILING MACHINERY employs a professional team dedicated to equipment design, manufacturing, and commissioning, ensuring quality control from the very source.
To meet market entry requirements, KINGREAL CEILING MACHINERY aligns with the regulations and policies of the client's country or region, providing internationally recognized certifications—such as CE, CSA, and CUL—as needed to ensure compliance with local standards.
During the design and production phases, the metal ceiling tile production line strictly adheres to regional specifications regarding electrical safety, mechanical guarding, and environmental protection, ensuring that all performance indicators meet local official technical standards.
Backed by a comprehensive compliance and certification system, KINGREAL CEILING MACHINERY effectively mitigates risks associated with customs clearance and commissioning, ensuring safe, compliant, and stable operation upon deployment.
Furthermore, KINGREAL CEILING MACHINERY has established a global service network to provide ongoing technical support and maintenance, safeguarding the metal ceiling tile production line's long-term stability and ensuring high-quality performance throughout its operational life.
KINGREAL CEILING MACHINERY Technical Team
As a professional manufacturer of metal ceiling tile making machines in China, KINGREAL CEILING MACHINERY has been in design - production - installation - after-sales for more than 20 years. KINGREAL CEILING MACHINERY is able to customize production solutions according to customer‘s drawings and specific parameter requirements.
After you order, KINGREAL CEILING MACHINERY technical team will test the machine in an effort to ensure every mechanical and electrical part is in perfect condition.
Related Local Installation Cases
To date, KINGREAL CEILING MACHINERY engineers have provided on-site installation services across numerous countries, including Saudi Arabia, Russia, Turkmenistan, the UAE, Greece, India, Italy, the Dominican Republic, Ukraine, and Sri Lanka.
Upon arrival at the site, KINGREAL CEILING MACHINERY engineers not only complete metal ceiling tile production line installation and commissioning but also conduct systematic hands-on training.
This ensures that client operators quickly master equipment usage and adhere to standardized daily operating procedures. Such standardized operation effectively minimizes abnormal equipment wear and tear, thereby extending the overall service life of the metal ceiling tile production line.
Customer Visit
It is such a delight to have friends coming from afar. KINGREAL CEILING MACHINERY warmly welcomes customers to visit KINGREAL CEILING MACHINERY factory and communicate with KINGREAL CEILING MACHINERY!
Are you a manufacturer?
Yes, KINGREAL Ceiling Machinery is a professional sheet metal processing machines manufacturer, we are an OEM. We have been focusing on the field of machine manufacturing for more than 20 years.How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.What's your Warranty ？
12 months except human error, during which all parts damaged because of quality problem will be changed for free. Parts that are out of warranty will be provided in factory price.What's your delivery Time ？
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, Manual book and video is provided to show how to install and operate.
