Production Line Description

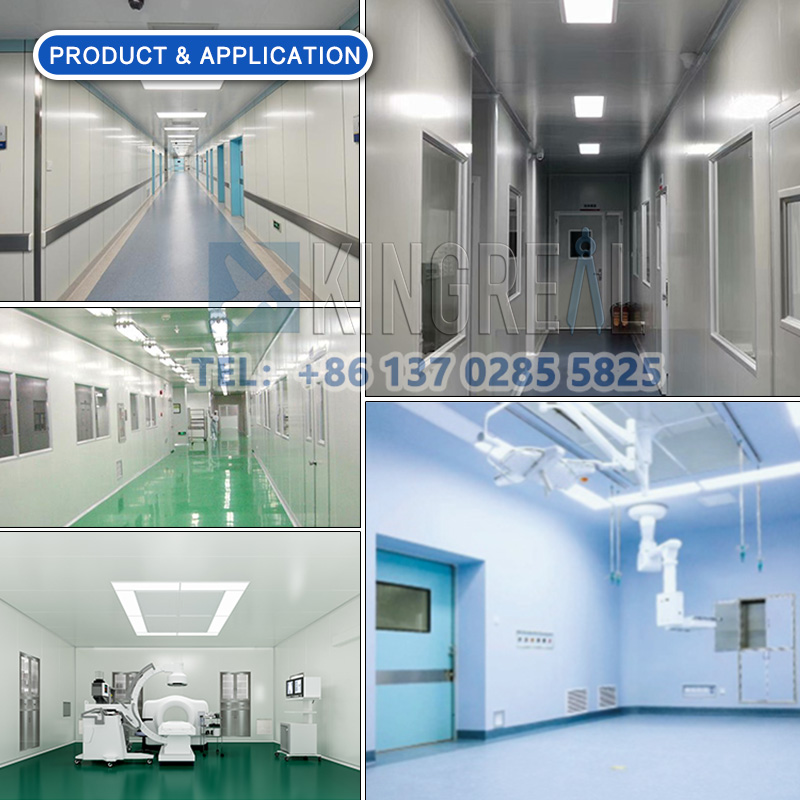

Full Auto Clean Room Sandwich Panel Production Line is a kind of equipment used to produce clean room sandwich panel. The clean room sandwich panel is a kind of building material composed of color steel plate and sandwich material, which is commonly used in the manufacture of clean room, cold storage, industrial plant and other places that need heat preservation, sound insulation and fireproof performance.
The design and operation of a clean room sandwich panel production line requires consideration of factors such as material selection control of the processing process, and operation and maintenance of the equipment to ensure the production of sandwich panel products that meet the requirements. KINGREAL will develop a customized production plan based on the customer’s actual production needs as well as existing equipment to meet the customer’s production needs.
Working Process Of Clean Room Sandwich Panel Production Line

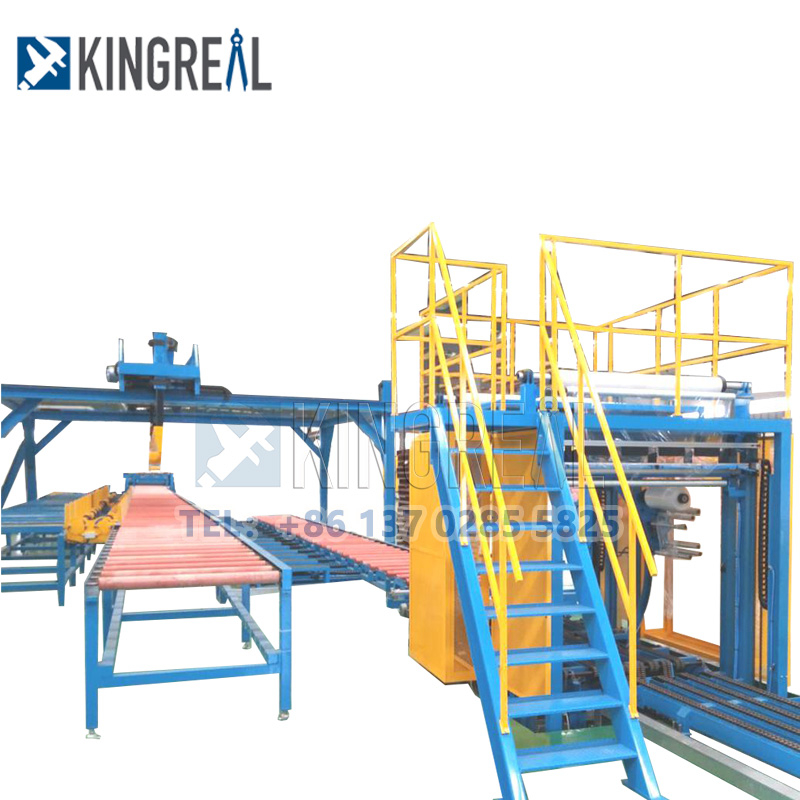

Hydraulic Decoiler -- Leveler Device -- Box Plate Roll Forming Machine -- Sandwich Panel Glue Spraying System -- Glass Magnesium Board -- Conveying And Turning -- High Pressure Machine -- Stacking Machine -- Packing Machine
Main Component Detail
①Box Plate Roll Forming Machine
This Equipment includes 3T manual feeding device, leveling device, transmission device, forming roller conveyor and main machine (including guiding platform), cutting device after forming, hydraulic system and finished product pallet device.
When loading, the steel rolls are loaded into the inner-supported opening frame and braced. Then, the sheet is correctly introduced into the leveling device through the two-roller nip feed, and after roll forming, it passes through the post-forming cutting device, and finally comes out of the sheet through the finished product pallet device.
②Sandwich Panel Glue Spraying System
Gluing equipment is essential in purified sandwich panel production line. Gluing equipment is mainly used to spread the glue evenly on the surface of the sandwich panel to ensure the bonding quality and stability of the sandwich panel.
The function of the glue drenching machine is to drench one-component glue or two-component glue on the surface of the work-piece with precise measurement and uniformity.
It can be equipped with automatic feeding, automatic heating, automatic cleaning, nitrogen filling protection, over-pressure alarm and other functions according to the characteristics of the glue.

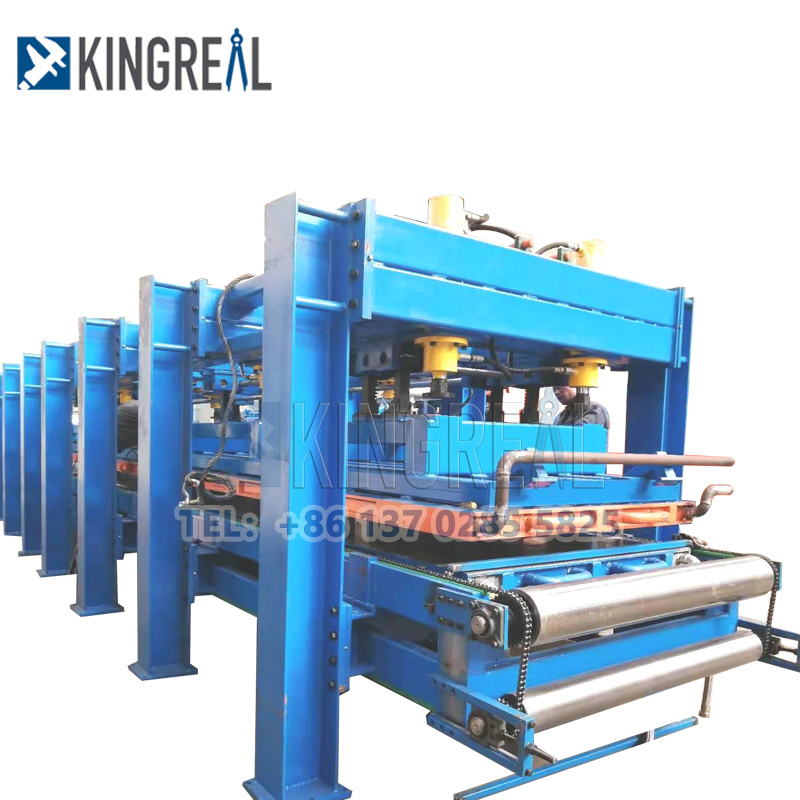

③High Pressure Machine
The high press equipment consists of main machine, hydraulic drive system, iron conveyor belt carrier template, carrier template support, carrier template heating system, electric control system and so on. In order to meet the requirements of foaming material process, a set of oil heating system is configured in the production line for heating the template of the laminating machine.
Depending on the production requirements, KINGREAL CEILING MACHINERY can offer customization of individual components as well as the design of other matching equipment. Feel free to contact us!

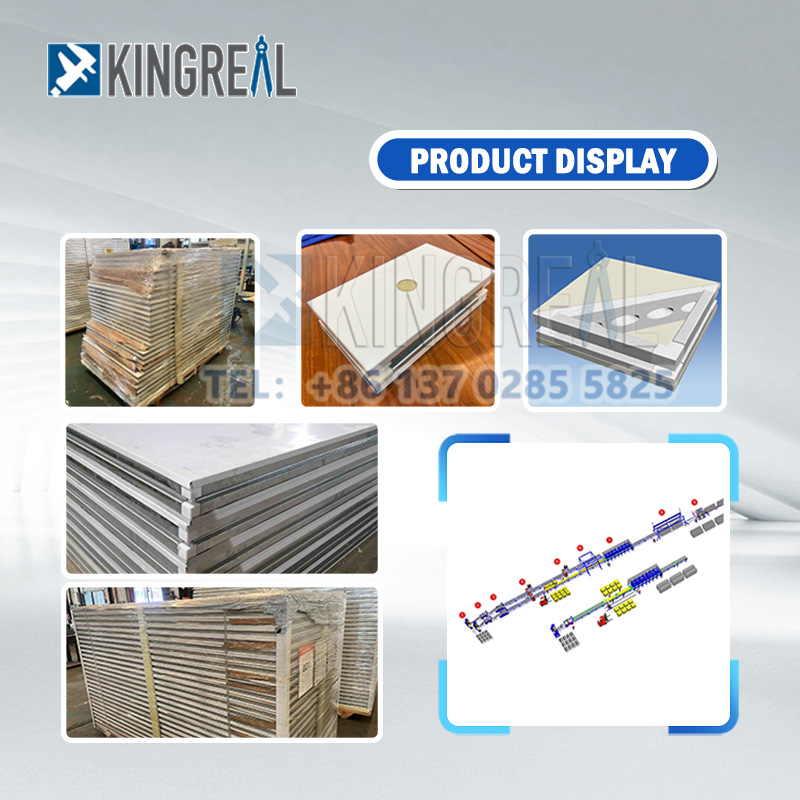

Final Product
Are you a manufacturer?
Yes, KINGREAL Ceiling Machinery is a professional sheet metal processing machines manufacturer, we are an OEM. We have been focusing on the field of machine manufacturing for more than 20 years.How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.What's your Warranty ？
12 months except human error, during which all parts damaged because of quality problem will be changed for free. Parts that are out of warranty will be provided in factory price.What's your delivery Time ？
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, Manual book and video is provided to show how to install and operate.
