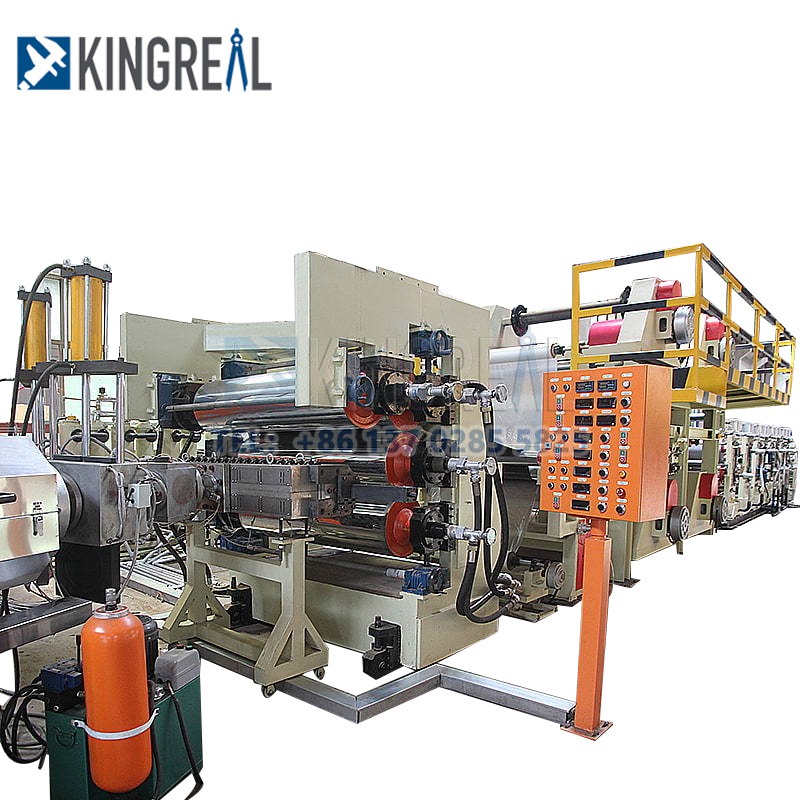

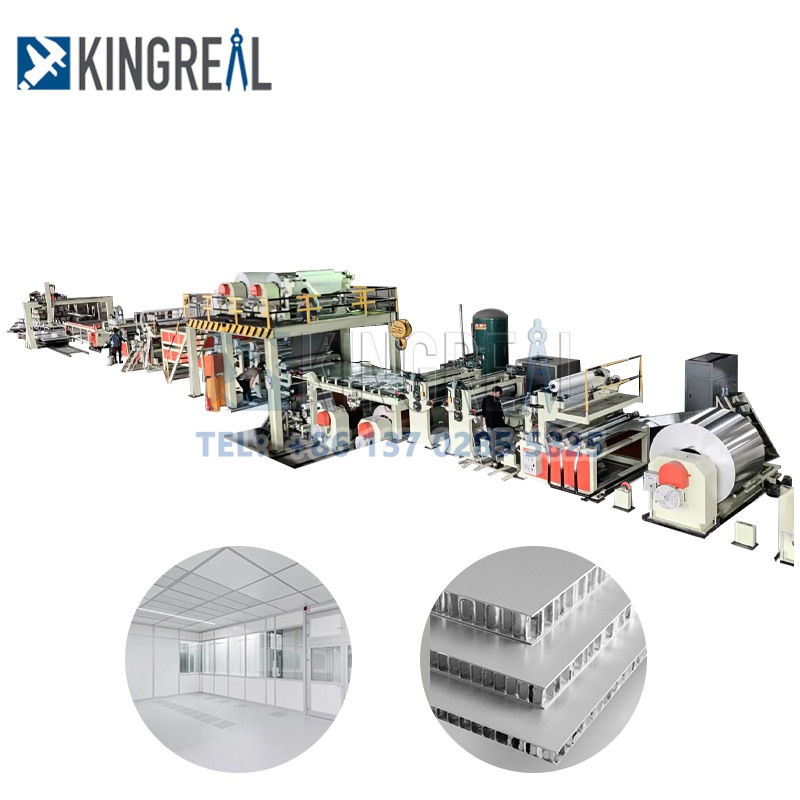

Full Automatic Aluminum Honeycomb Panel Production Line
- KINGREAL CEILING MACHINERY
- China
- 60
- 9999
Description Of Aluminum Honeycomb Panel Production Lines
KINGREAL CEILING MACHINERY aluminum honeycomb panel production line is a general term for the equipment and processes used to manufacture honeycomb panels. This production line usually includes processes such as honeycomb core material preparation, panel coating, core lamination, cutting and packaging.
Honeycomb panels are made by sandwiching a honeycomb structure between two layers of panels, and this material is widely used in construction, transportation, decoration and other fields. Aluminum honeycomb panel forming machine can realize efficient, stable and automatic production process, which greatly improves the production efficiency and quality of honeycomb panels.

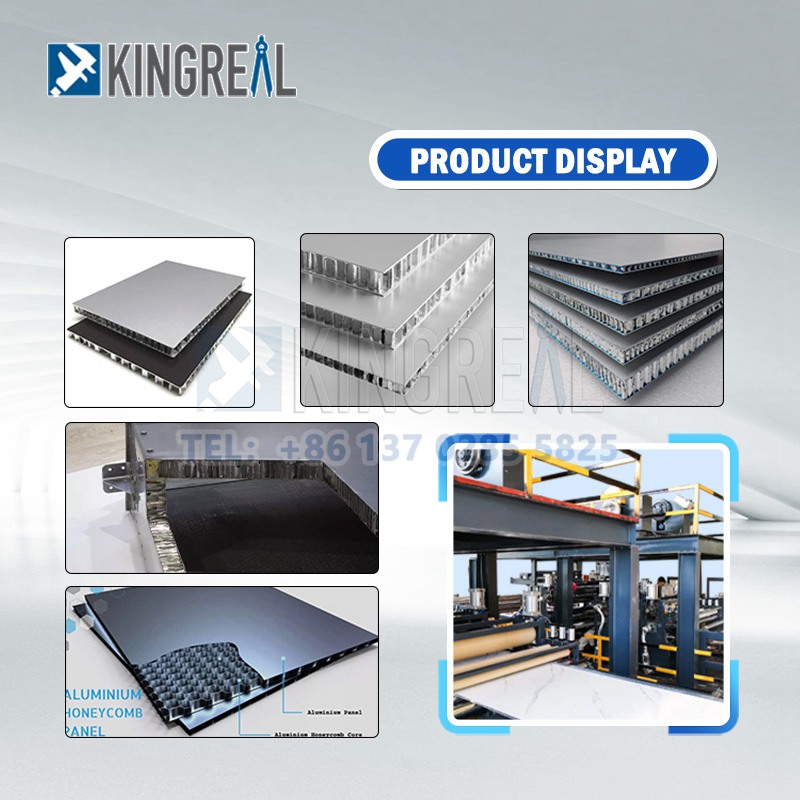

Structure Of Honeycomb panel
★Fluorocarbon Spraying Type Baking Finish
★Chromated Layer
★Aluminum Plate
★Adhesive Film
★Aluminum Honeycomb Core
★Adhesive Film
★Polyester Baking Finish
Working Procedure Of Aluminum Honeycomb Panel Production Line
Expanding
↓
Calender
↓
Laminating
↓
Cooling
↓
Leveling
↓
Trimming
↓
Cutting
↓
Stack
Technical Specification
| Coil Thickness | 0.3-1.0mm |
| Coil Weight | 3T |
| Product Thickness | Honeycomb Plate 5-30mm |
| Design Machine Column Speed | 0-8m/min |
| Production Speed | 2-6m/min |
| Roll Width Range | 800-1600mm |
| Machine Power | 538KW |
| Dimension | 4000*380*300cm |
Advantage Of This Production Line
Efficient production
Honeycomb panel forming machine adopts automatic production method with high production efficiency, which can quickly manufacture a large number of honeycomb panel products.
Cost saving
Compared with traditional manual production, honeycomb board forming machine can reduce labor cost and improve production efficiency, thus reducing production cost.
High product quality
Honeycomb panel forming machine adopts mechanized production method, and the products produced have high consistency and stability, which can meet the customers‘ requirements for product quality.
Application Of Honeycomb Panel
Honeycomb panels are widely used in many fields such as furniture manufacturing, building decoration, automobile manufacturing, aerospace, etc. The following are the main features of aluminum honeycomb panels:
1. Lightweight and durable: The honeycomb core of metal honeycomb panel makes them very lightweight, yet still provides excellent strength. This makes metal honeycomb panels ideal for use in sectors such as aerospace, automotive and construction.
2. Sound and heat insulation properties: The honeycomb structure of aluminum honeycomb panels can effectively isolate sound and heat. This is great for interior decoration and insulation.
3. Easy to install and maintain: The lightweight nature of metal honeycomb ceiling panel makes them easy to handle and install. Additionally, cleaning and maintenance are relatively simple.
Complete Metal Honeycomb Panel Production Solution
KINGREAL CEILING MACHINERY focusing on the production of metal processing production over 20 years, we can provide a complete solution of metal sheet system production, including metal tile and metal tile carrier.
KINGREAL CEILING MACHINERY can provide Spring Tee Roll Forming Machine for producing carrier of metal honeycomb panel. Combination of Metal Honeycomb Panel Production Line and Spring Tee Roll Forming Machine is convenient for your metal honeycomb panel system production and favorable to improve product consistency.
KINGREAL CEILING MACHINERY EXHIBITION
KINGREAL CEILING MACHINERY participates in domestic and international exhibitions, and are committed to providing customers with customized machine manufacturing solutions. KINGREAL CEILING MACHINERY's featured machines include:
- Metal ceiling production line
- Metal sheet perforation line
- Linear strip ceiling machine
- False ceiling channel machine
......
Are you a manufacturer?
Yes, KINGREAL Ceiling Machinery is a professional sheet metal processing machines manufacturer, we are an OEM. We have been focusing on the field of machine manufacturing for more than 20 years.How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.What's your Warranty ？
12 months except human error, during which all parts damaged because of quality problem will be changed for free. Parts that are out of warranty will be provided in factory price.What's your delivery Time ？
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, Manual book and video is provided to show how to install and operate.
