Suspended Ceiling Linear Strip Ceiling Machine
- KINGREAL CEILING MACHINERY
- China
- 90 Days
- 9999
Video About Linear Strip Ceiling Machine
Description of Linear Strip Ceiling Machine
KINGREAL CEILING MACHINERY excellent drawing design-production technology is reflected in KINGREAL CEILING MACHINERY Linear Strip Ceiling Production Line, which is one of the hottest selling metal linear strip ceiling making machine. This production line consists of decoiler, leveler, main roll forming machine and cutting system.
KINGREAL CEILING MACHINERY can offer a complete suspended ceiling production line. In addition to linear strip ceiling roll forming machine, u baffle ceiling making machine, open cell ceiling making machine and metal ceiling machine also can be choosen. KINGREAL CEILING MACHINERY can offer a customized design according to your production needs.

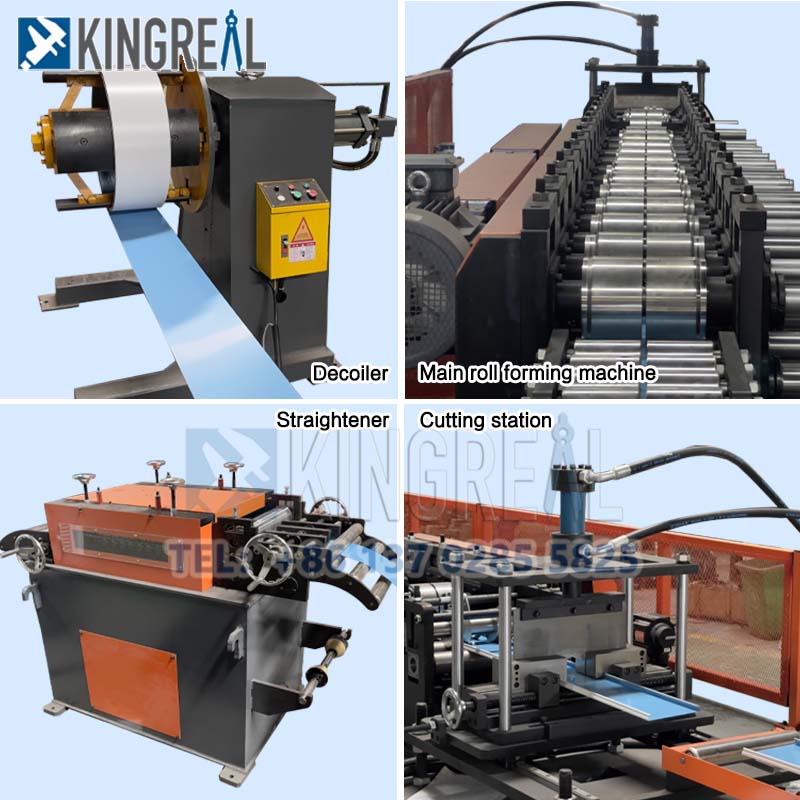

Main Components of Linear Strip Ceiling Machine
Decoiler |
Leveler |
Main Roll Forming Machine |
Cutting Station |
Hydraulic Decoiler - Main Roll Forming Machine - Shearing Station - Output Table
Production Line Structure
| List | Name | Qty |
| 1 | Decoiler | 1 Unit |
| 2 | Straightener | 1 Unit |
| 3 | Hydraulic Punching Press | 1 Unit |
| 4 | Servo Feeder | 1 Unit |
| 5 | Automatic width adjustment system | 1 Unit |
| 6 | Horzitonal Machine frame | 16 Sets |
| 7 | Shearing & Bending | 1 Unit |
| 8 | Output desk | 1 Unit |
| 9 | Electrical Control system | 1 Unit |
Specification of Linear Strip Ceiling Machine
| Raw materials | Pre-painted Aluminum coil |
| R84 ceiling sizes | 84mm width |
| Uncoiler | Single head uncoiler, manual loading and manual expansion |
| Forming rollers set | 10 stations, wall panel structure or independent archway panel structure |
| Maximum forming speed | 30 m / min |
| Shearing method | Hydraulic Stop shearing |
| Roll Forming stands | 10 Rollers station |
| Rollers materials | High quality Cr12MoV or SKD11 mold steel with vacuum heat treatment |
| Machine Power | ~ 7.5 KW |
Features of Linear Strip Ceiling Machine
Hydraulic Decoiler for Linear Strip Ceiling Machine |  |
 | Automatic Width Adjustment for Linear Strip Ceiling Machine |
Hydraulic Punching Station for Linear Strip Ceiling Machine |  |
Diverse Suspended Ceiling Production Line
KINGREAL CEILING MACHINERY has been engaged in the suspended ceiling machine manufacturing industry for more than 20 years, is a professional suspended ceiling machine manufacturer. KINGREAL CEILING MACHINERY has our own factory and technical team and can customize suspended ceiling making machines that meet your production needs. In addition to linear strip ceiling making machine, KINGREAL CEILING MACHINERY also can provide baffle ceiling machine, open cell ceiling machine, metal ceiling panels making machine and etc..Welcome to contact us and send us your production, and KINGREAL CEILING MACHINERY will has professionals to send you the latest machine solutions and quotations.
What Kinds of Linear Strip Ceiling Can Manufacture?
- C-shape linear strip ceiling
- Acoustic linear metal ceiling
- G-shape strip ceiling
- H-shape linear strip ceiling
- S-shape linear metal ceiling
- V-shape strip ceiling
If you have a requirement of manufacturing other types of linear metal ceiling, please contact us!
S-Type Linear Strip Ceiling
84R Linear Strip Ceiling

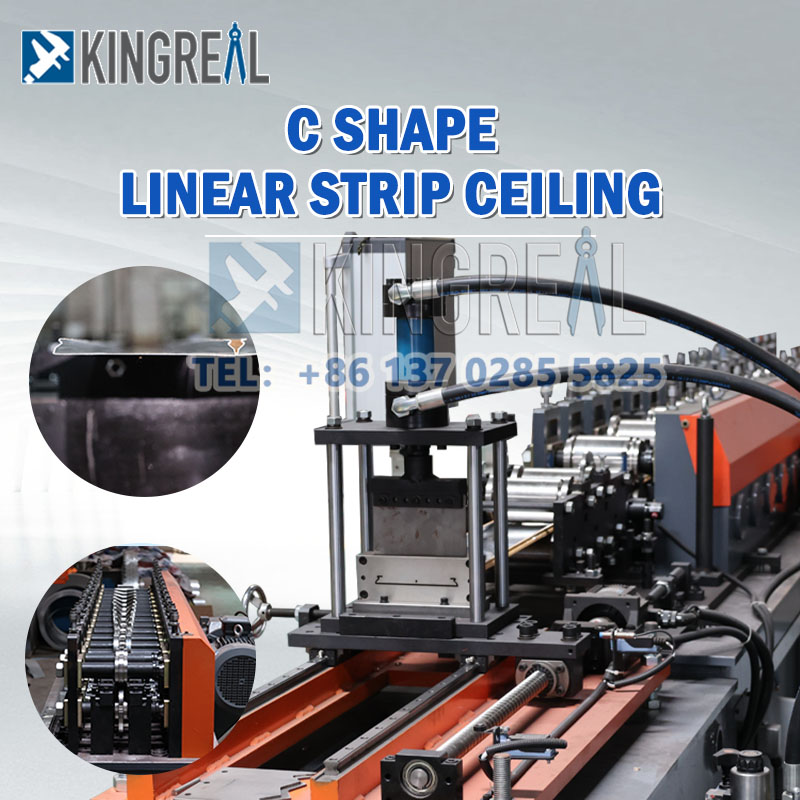

C-Type Linear Strip Ceiling
S-Type & G-Type Linear Strip Ceiling
How KINGREAL CEILING MACHINERY Ensure The Quality of Linear Strip Ceiling Machine
Establish a strict quality system
In order to better control the quality of the linear strip ceiling machine, KINGREAL CEILING MACHINERY has established its own factory and technical team. KINGREAL CEILING MACHINERY has established standardized work process standards to ensure that the machine maintains a high standard from manufacturing to debugging. From the selection of parts to the debugging of the machine, KINGREAL CEILING MACHINERY team works strictly in accordance with the standards. To provide customers with professional and high-quality machines, in order to fulfill this promise, KINGREAL CEILING MACHINERY has subdivided the work into every step.
Quality certified
KINGREAL CEILING MACHINERY has passed ISO9000 certification and has the ability of ISO9000 quality system management. It has also passed the international CE certificate certification.
Installation Service
In order to help KINGREAL CEILING MACHINERY's customers to solve machine installation problems, KINGREAL CEILING MACHINERY will provide both online and local installation services.
1. Online installation guide
- Photos and videos of machine will be sent
- Online group will be initiated to discuss together
- Regular video conference be held to keep communication and contacting
2. Local installation
KINGREAL CEILING MACHINERY will arrange engineers to go abroad to install the machine at the customer's place to ensure the normal operation of the machine, and will provide all technical guidance. Exact costs to be negotiated.
KINGREAL CEILING MACHINERY Successfully Installation Cases in Global
Are you a manufacturer?
Yes, KINGREAL Ceiling Machinery is a professional sheet metal processing machines manufacturer, we are an OEM. We have been focusing on the field of machine manufacturing for more than 20 years.How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.What's your Warranty ？
12 months except human error, during which all parts damaged because of quality problem will be changed for free. Parts that are out of warranty will be provided in factory price.What's your delivery Time ？
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, Manual book and video is provided to show how to install and operate.
