Great Wall Panel Machine in Facade Wall System

In modern facade wall systems, various types of finished products made from great wall panel machines, with their unique three-dimensional texture, excellent physical properties, and rich decorative effects, have become the preferred material for an increasing number of construction projects. Great wall panel roll forming machines produce great wall panels with significant advantages such as light weight, high strength, and good corrosion resistance. They are widely used in various facade wall systems as a core facade wall decoration material, enhancing both the aesthetic appeal of buildings and the practicality and durability of the facade walls.

KINGREAL CEILING MACHINERY, as a professional manufacturer of great wall panel roll forming machines, provides customers with efficient and precise solutions. This article will introduce great wall panel machines in detail.

Working Principle of Great Wall Panel Machines

Great wall panel roll forming machines are specifically designed for processing metal great wall panels. Through continuous and progressive roller pressing, flat metal strips are processed into great wall panels with distinct convex and concave textures and regular patterns. The cold bending forming process ensures the structural strength of the great wall panels while maximizing the preservation of the original properties of the raw materials.

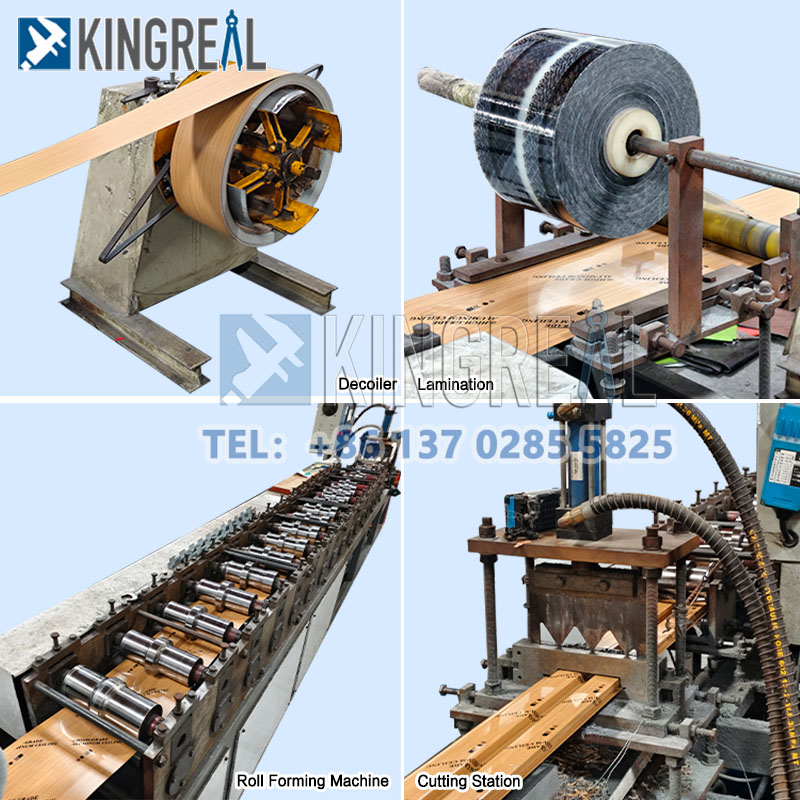

The workflow of the great wall panel machine is as follows:

(1)The operator places the aluminum alloy strip (or other commonly used metal coils) on the decoiler of the great wall panel roll forming machine. The decoiler smoothly unfolds the large metal coil, preventing wrinkles and misalignment, thus laying the foundation for subsequent processing. Then, the unfolded metal strip is fed into the roll forming machine via a feeding device. The feeding device employs a precise guiding structure to ensure accurate and stable feeding of the strip into the roll forming machine, preventing misalignment and jamming, and ensuring processing accuracy.

(2)The roll forming machine is the core component of the great wall panel machine. It consists of multiple sets of precision rollers. The shape, arrangement, and spacing of the rollers are pre-designed and adjusted according to the great wall panel template, directly determining the final shape and dimensional accuracy of the great wall panel. The metal strip is gradually rolled and bent by multiple sets of rollers, slowly forming the desired textured surface of the great wall panel. The entire process is gradual, avoiding problems such as cracks and deformation caused by one-time forming.

(3)After forming, the great wall panels are conveyed to the cutting station, where they are precisely cut into uniform lengths to meet the installation requirements of exterior wall projects.

Ps: It is worth mentioning that the great wall panel roll forming machine is equipped with an advanced control system, achieving fully automated control of the entire production process. Operators can precisely adjust parameters such as feeding speed, roller rotation speed, and shearing length through the control system to ensure that each batch of great wall panels has uniform specifications and stable quality.

Advantages of Using Great Wall Panel Machine in Facade Wall Systems

(1) High forming precision

The great wall panel machine adopts a multi-roller progressive cold bending process, which effectively avoids problems such as wavy lines, scratches, and uneven textures in the panels. Great wall panels processed by the great wall panel roll forming machine have a smooth and flat surface, consistent great wall panel texture depth, clear edges, and straightness errors controlled within a minimal range, fully meeting the high-end decorative standards of exterior curtain walls.

(2) Efficient mass production

Facade wall projects are typically large-scale and time-sensitive. Traditional manual processing or simple equipment processing is inefficient and cannot meet deadlines. The great wall panel machine, however, achieves a fully automated integrated production process, covering all stages from uncoiling, leveling, forming, cutting, and unloading, requiring minimal manual intervention. Forming speeds can reach 10m/min, significantly improving production efficiency.

(3) Strong adaptability

The great wall panel roll forming machine has excellent adaptability, processing various commonly used facade wall metal materials such as color steel plates, galvanized plates, aluminum alloys, and stainless steel plates. Its wide range of thickness adaptability meets the load-bearing and weather resistance requirements of different exterior walls. Furthermore, the great wall panel machine supports the production of various standard and customized great wall panels, accurately producing panels that meet specific needs based on exterior wall design drawings.

(4) Stable and durable

The great wall panel machine adheres to the principles of high strength and high durability in its structural design and material selection. The machine body adopts a heavy-duty H-beam steel frame, which undergoes overall annealing treatment, resulting in high strength and resistance to deformation. The rolls are made of 40Cr forged steel with precision grinding and chrome plating, offering excellent wear resistance, a long service life, and enabling long-term continuous and stable operation with an extremely low failure rate. Furthermore, the great wall panel roll forming machine is equipped with comprehensive fault warning and overload protection functions, enabling timely detection of abnormalities during equipment operation, preventing equipment damage, and reducing maintenance costs.

(5) Intelligent and convenient

The great wall panel machine is equipped with a PLC touch screen control system. The user interface is simple and easy to understand. Operators can set the panel length, automatically count, and automatically cut with a single button, requiring no professional technical training; even beginners can quickly learn to operate it. Simultaneously, the control system can display equipment operating parameters, production quantity, and other information in real time, allowing operators to monitor production progress and adjust processing parameters promptly.

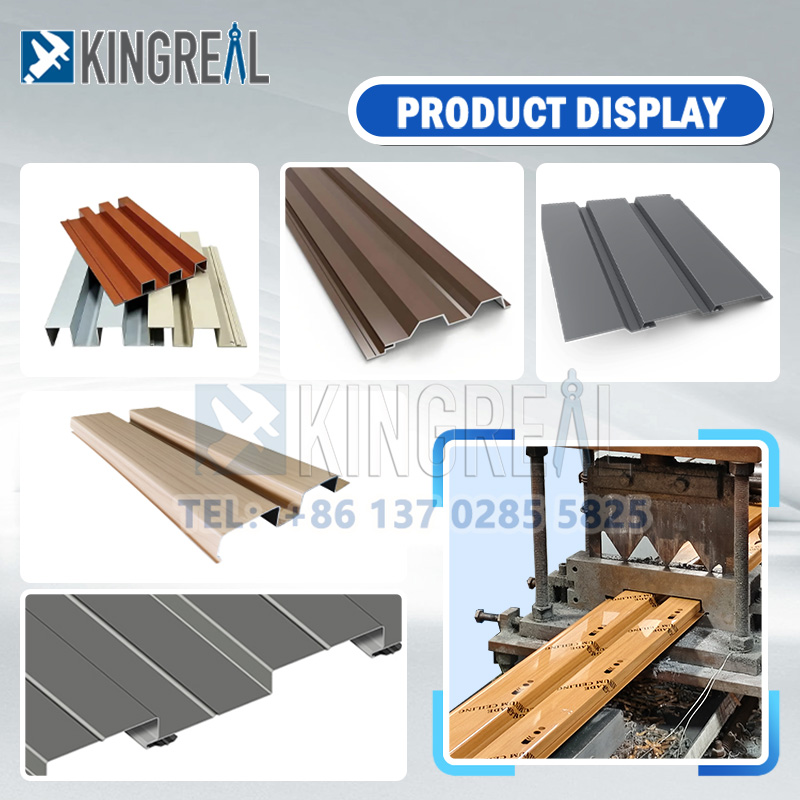

Great Wall Panel Machine can Produce Various Types of Great Wall Panels

With its flexible customization capabilities, the great wall panel roll forming machine can meet the personalized needs of different facade wall designs. The great wall panel machine can precisely design customized molds based on customer-provided drawings or finished product samples, thereby producing great wall panels of different types and specifications to suit various facade wall decoration scenarios. Currently, common great wall panel types produced by the great wall panel roll forming machine include semi-circular panels, corrugated panels, and double semi-circular corrugated panels. In addition to standard types, the machine also supports the production of various customized panels. Whether it's a great wall panel of a special size or a customized panel with special textures, the great wall panel machine can precisely meet production needs by adjusting the mold and optimizing processing parameters. As a professional great wall panel roll forming machine manufacturer, KINGREAL CEILING MACHINERY has a professional engineering team that can provide comprehensive customized solutions based on customers' actual project needs, from mold design and equipment debugging to production guidance, ensuring that the produced great wall panels perfectly match the design and installation requirements of the facade wall system.

If you would like to learn more about great wall panel machines, their technical parameters, or have customized great wall panel roll forming machine needs, please contact KINGREAL CEILING MACHINERY directly.
