How Does a Damper Spring Leaf Machine Work?
2025-11-19 17:00
A damper spring leaf machine is a specialized device for producing various sizes of damper spring leaf, widely used in the manufacture of fire damper fittings for HVAC systems. With the increasing demand for air conditioning and ventilation systems in modern buildings and industries, the importance of the fire damper leaf spring roll forming machine is becoming increasingly prominent. This damper spring leaf machine not only improves production efficiency but also ensures high precision of the finished product, making it an indispensable part of related manufacturing industries. This article will detail the working principle and main components of the fire damper leaf spring roll forming machine.
1. Main Components of Damper Spring Leaf Machine

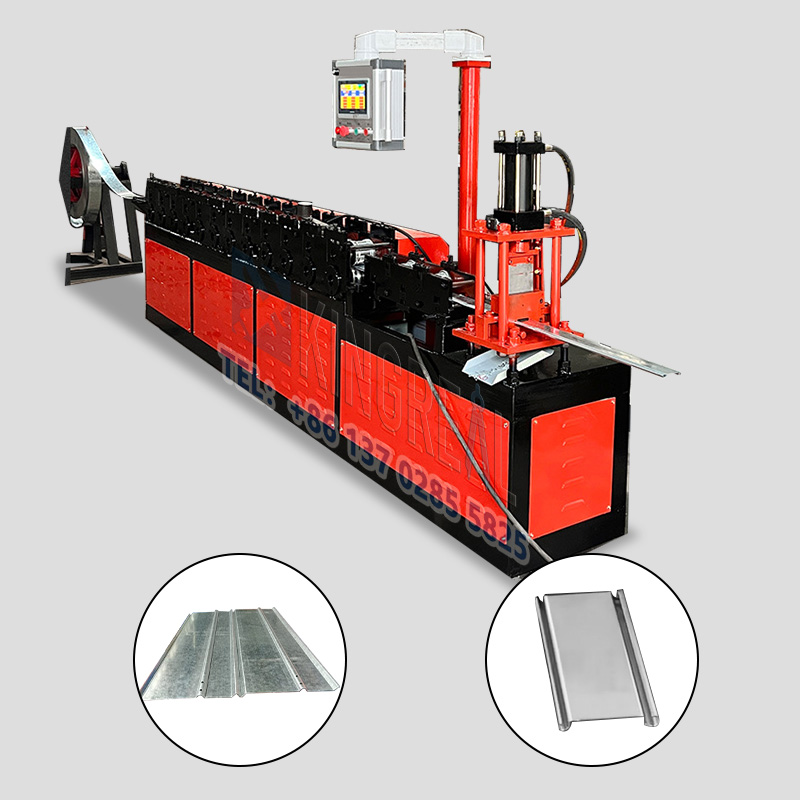

The fire damper leaf spring roll forming machine consists of several precision components that work together to achieve an efficient production process.
1.1 Mechanical structure for damper spring leaf machine
The frame of the fire damper leaf spring roll forming machine is made of high-strength materials to ensure stability during operation. Furthermore, the design of the drive system and transmission components is also crucial. Its drive system typically consists of an electric motor and a reducer, effectively transmitting power and ensuring safe and stable operation of the damper spring leaf machine at high speeds.
1.2 Control system for fire damper leaf spring roll forming machine
The core of the damper spring leaf machine is the PLC control system, which has excellent programmability. Through the PLC control panel, users can set and adjust various parameters of the fire damper leaf spring roll forming machine. Furthermore, the application of sensors makes the entire production process more intelligent, enabling real-time monitoring of equipment operation and ensuring process stability.
1.3 Processing tools for damper spring leaf machine
The fire damper leaf spring roll forming machine is equipped with a cutting device and a forming device, which work together to achieve rapid conversion from raw materials to finished products. The cutting device is mainly used to cut stainless steel coils to a fixed length, while the forming device gradually rolls the metal material into the shape required by the customer.
2. Working Principle of Damper Spring Leaf Machine

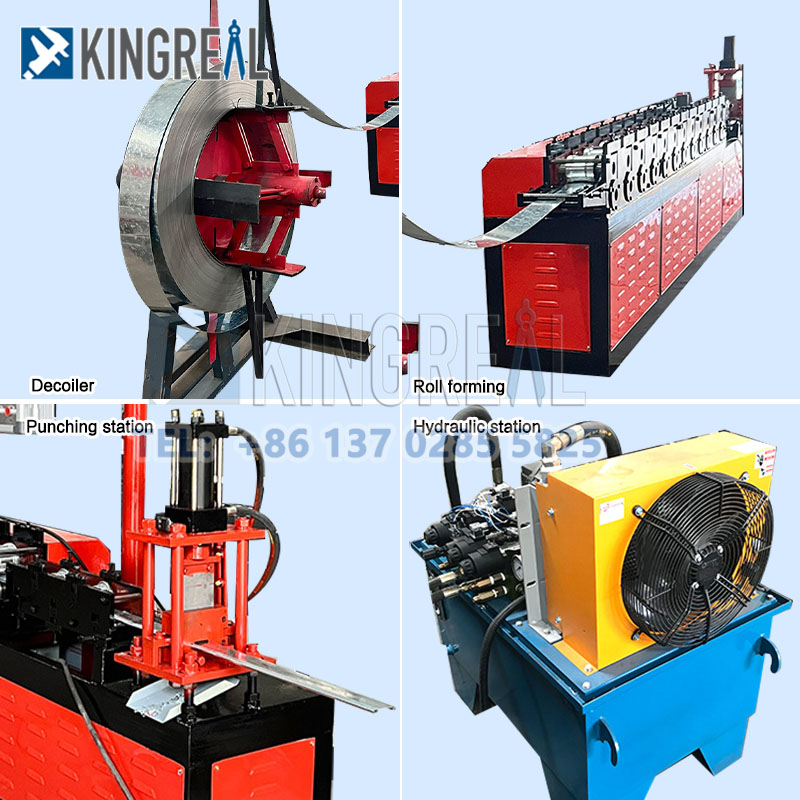

The operation of the fire damper leaf spring roll forming machine can be divided into several main steps, the detailed workflow of which is as follows:
1
Raw Material Preparation
This damper spring leaf machine typically uses stainless steel coils with a thickness of approximately 0.2mm as raw material. Operators prepare the coils that meet the specifications and place them into the decoiler.
2
Material Feeding
After the stainless steel coils are unrolled by the manual decoiler, the feeding system automatically feeds the unrolled coils into the roll forming machine. The accuracy of the feeding system directly affects the quality of the finished product, therefore, the design of this system is crucial.
3
Processing Process
Inside the roll forming machine, the stainless steel coils are gradually rolled by multiple rollers. These rollers can be adjusted according to customer specifications to ensure the material maintains the appropriate shape and thickness at every stage. After this series of rolling processes, the material enters the shearing and punching stages, ultimately forming high-precision, consistent finished products.
3. Features of Damper Spring Leaf Machine
The fire damper leaf spring roll forming machine excels in performance and features, primarily in the following aspects:
3.1 Servo drive and fully automatic operation
The damper spring leaf machine utilizes servo drive to ensure high efficiency and precision during production. Furthermore, the fire damper leaf spring roll forming machine supports fully automatic operation, reducing labor costs and improving production efficiency.
3.2 Automatic punching and fixed-length cutting
The damper spring leaf machine is equipped with an automatic punching device that can perform precise punching as needed. It also provides a fixed-length cutting function, ensuring consistent dimensions for each finished product and improving product interchangeability.
3.3 Flexible settings for fire damper leaf spring roll forming machine
Users can freely set the number of punches and the punching spacing according to production needs, ensuring that the personalized requirements of different customers are met. This flexibility gives the damper spring leaf machine a competitive advantage in the market.
3.4 Continuous order mode for damper spring leaf machine
This fire damper leaf spring roll forming machine is designed for continuous order production, enabling rapid response to high-volume production demands and adaptability to a rapidly changing market environment.
4. Damper Spring Leaf Machine Maintenance and Safety Precautions
To ensure the normal operation of the fire damper leaf spring roll forming machine, daily maintenance and safe operating procedures are essential.
4.1 Daily maintenance for damper spring leaf machine
Operators should regularly inspect the fire damper leaf spring roll forming machine, especially after high-temperature or high-load operation. The lubrication system should be kept in good condition, with regular addition of lubricating oil to reduce friction and wear.
4.2 Regular inspection and maintenance procedures
Regularly inspect all components of the damper spring leaf machine, including the drive system, electrical control system, and forming rollers. If any abnormalities are found, stop the fire damper leaf spring roll forming machine immediately for inspection and address the issue promptly.
4.3 Safe operating procedures
Operators should follow safe operating standards and ensure that appropriate protective equipment, such as safety glasses and gloves, is worn when using the damper spring leaf machine. Furthermore, necessary training should be provided to ensure all operators are familiar with the fire damper leaf spring roll forming machine's operating procedures and emergency braking measures. When performing maintenance or troubleshooting, always disconnect the power supply to avoid accidents.
The fire damper leaf spring roll forming machine plays an indispensable role in enhancing the production efficiency and precision of fire dampers in HVAC systems. Its working principle, from raw material preparation to finished product delivery, operates in a highly efficient and stable manner. In an increasingly sophisticated market, the damper spring leaf machine has a very broad application prospect. Through continuous optimization of production processes and improvement of fire damper leaf spring roll forming machine performance, this technology will undoubtedly support the development of more industries in the future.
If you are interested in the damper spring leaf machine, please feel free to contact KINGREAL CEILING MACHINERY!
