The Ultimate Guide to Sheet Metal Leveling Machine

Sheet metal leveling machines play a crucial role in the metalworking industry. Regardless of the specific processing technique employed, the use of a metal sheet leveling machine constitutes the essential first step. This sheet metal leveling machine is designed to process metal sheets—which may have developed deformations or accumulated internal stresses due to manufacturing, handling, or storage—by passing them between sets of upper and lower rollers to achieve surface flatness. This procedure is great readying for next operations including as shearing, punching, and shaping. Moreover, this process greatly lowers material waste as well as guarantees the dimensional accuracy of the final parts.

Working Principle of Metal Sheet Leveling Machine

The operating principle of a sheet metal leveling machine relies on utilizing multiple sets of staggered upper and lower straightening rollers. As the metal sheet passes through the gaps between these rollers, it undergoes a series of alternating bending deformations. During this process, the roller gaps in the entry section are set to their tightest tolerance; here, the metal sheet undergoes significant plastic deformation, effectively "breaking down" and dispersing its internal stresses. In the subsequent intermediate section, the roller gaps gradually widen, causing the degree of deformation to diminish. Finally, in the exit section, the roller gaps are adjusted to a dimension closely approximating the sheet's thickness, allowing only for elastic recovery. Through this sequence of transformations, the internal stresses within the metal sheet are ultimately distributed uniformly, resulting in a flat and level finish. The process effects achieved by metal sheet leveling machines in metalworking are significant; they not only effectively eliminate defects generated during material production and handling but also ensure the smooth execution of subsequent processing stages, thereby mitigating potential material waste and quality-related risks.

Importance of Sheet Metal Leveling Machine

When left in an un-leveled state, the surface of metal materials often exhibits various irregular defects. These defects not only compromise the material's visual appearance but also severely hinder subsequent processing steps. Specifically, these irregular defects manifest in the following forms:

-Surface Waviness: This condition is typically caused by uneven stress distribution during the raw material production process or by improper storage practices.

-Natural Curvature: Depending on how coiled materials are stored, their natural shape may become altered, making it impossible to achieve accurate alignment during subsequent processing operations.

-Edge Distortion: Deformation along the edges of the material can severely compromise assembly precision, resulting in poor fit and alignment between components.

-Central Bulging: A raised area in the center of the material can lead to material fracture or create stress concentrations during the forming process, thereby negatively impacting the overall performance of the final product.

If un-leveled metal materials are fed directly into subsequent processing stages, a host of issues may arise, including poor component fit, elevated scrap rates, inconsistent welding results, and reduced material utilization efficiency. All of these factors pose potential risks to quality control. The advent of sheet metal leveling machines allows for the control of metal sheet flatness within strict tolerance ranges, providing factories with flatter, more stable surface materials and ensuring thorough preparation for downstream processes. For industries with extremely rigorous technical specifications—such as automotive manufacturing, steel construction, and precision equipment production—the role of the metal sheet leveling machine is truly indispensable.

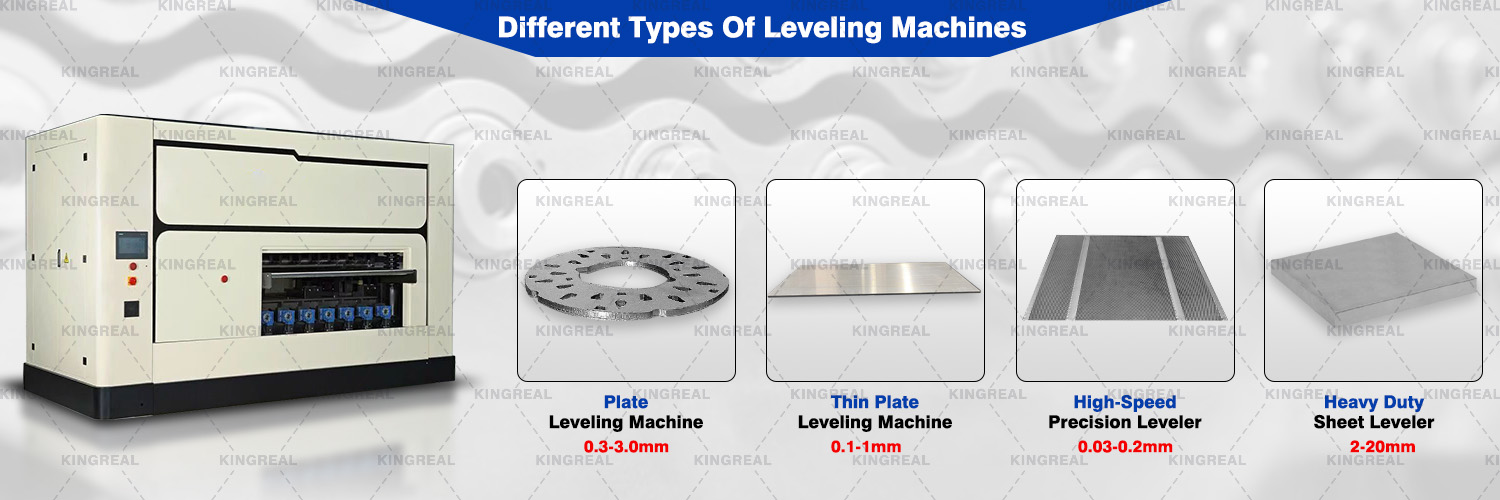

Diverse Sheet Metal Leveling Machine Solutions

Based on market demands and specific client requirements, KINGREAL CEILING MACHINERY offers a variety of metal sheet leveling machine types designed to meet the practical application needs of different scenarios.

1. Thin Plate Leveling Machine

Thin plate leveling machines are specifically engineered to process materials ranging in thickness from 0.1 mm to 1.0 mm. They are ideally suited for precision-focused industries—such as electronics manufacturing—where there are exacting requirements regarding material flatness and surface quality. The high efficiency and precision of thin plate leveling machines contribute to enhanced finished product quality during subsequent processing stages.

2. Heavy Duty Leveling Machine

Heavy duty leveling machines are utilized to process materials ranging from 2 mm to 20 mm in thickness, making them widely applicable to projects requiring heavier-gauge materials. Since the vast majority of industrial project requirements fall within this thickness range, heavy duty leveling machines have found widespread application across a diverse array of metal processing enterprises.

3. High Speed Sheet Metal Leveling Machine

High-speed metal sheet leveling machines can reach maximum operating speeds of up to 60m/min, delivering exceptional straightening performance for thin materials such as EI laminations and motor stators/rotors. Their high-speed and high-efficiency features set them apart especially good performers in production settings when quick output is a need.

Choosing the right kind of sheet metal leveling machine not only meets certain production needs but also helps to greatly enhance operational efficiency.

Applications of Metal Sheet Leveling Machines

The extensive applications of sheet metal leveling machines span virtually every sector of the metal processing industry. Specific application industries include:

1. Steel Construction Industry

In the steel construction sector, metal sheet leveling machines is often used to smooth coiled steel before further manufacturing. Once aligned, these steel materials guarantee construction project total quality improvement by meeting exacting technical requirements as well as guaranteeing assembly accuracy.

2. Automotive Manufacturing Industry

Sheet metal leveling machines play an equally vital role within the automotive manufacturing industry. The safety and durability of the finished car depend directly on the dimensional accuracy of the automotive parts and on the surface quality of the materials employed. Consequently, using a metal sheet leveling machine guarantees great precision part fitting and great welding results, therefore improving the general performance and dependability of the finished car.

3. Metalworking Industry

In the metalworking industry, metal sheet leveling machines are widely utilized for the pretreatment of metal sheets, ensuring the smooth execution of subsequent shearing, punching, and forming processes.  Only after going the leveling procedure can material deformation be greatly reduced, therefore improving the quality of the ultimate result.

4. Electronics Industry

In the electronics industry, the metal materials used in the manufacturing of circuit boards also require processing by a sheet metal leveling machine. Given the extremely high precision requirements for circuit boards, even the slightest defect can lead to functional instability in subsequent stages. Consequently, the use of a metal sheet leveling machine guarantees the consistency and stability of the circuit board materials.

Selecting the appropriate type and configuration of a sheet metal leveling machine not only improves material flatness and the precision of subsequent processing steps but also effectively reduces production costs and boosts the overall market competitiveness of the product. Therefore, when purchasing a metal sheet leveling machine, it is essential to thoroughly consider one's specific production requirements and the demands of subsequent manufacturing processes. Only through comprehensive preliminary research and comparative analysis can one maximize the return on investment and ensure the long-term growth of the enterprise. If you are looking for a sheet metal leveling machine tailored to your specific needs or have any questions, please feel free to contact us at any time; KINGREAL CEILING MACHINERY looks forward to providing you with professional advice and services!
