Aluminum Sheet Washing Machine
This aluminum sheet washing machine is specifically designed for the cleaning and drying of plates with greater thickness, facilitating the degreasing, dust removal, and surface cleaning of various large-scale work-pieces.
- KINGREAL CEILING MACHINERY
Details
Video About Aluminum Sheet Washing Machine

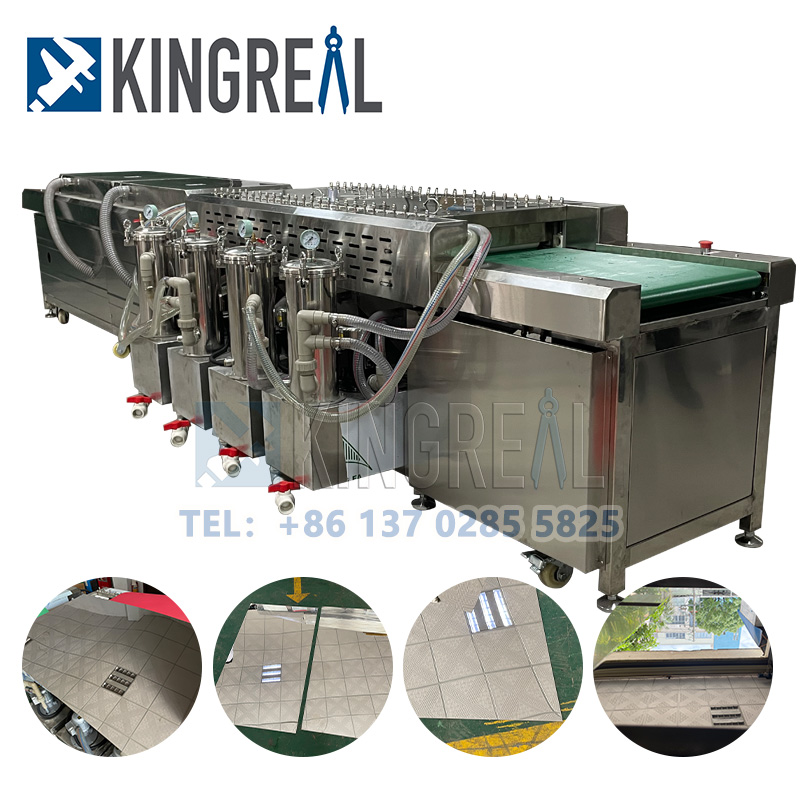

Definition of Aluminum Sheet Washing Machine

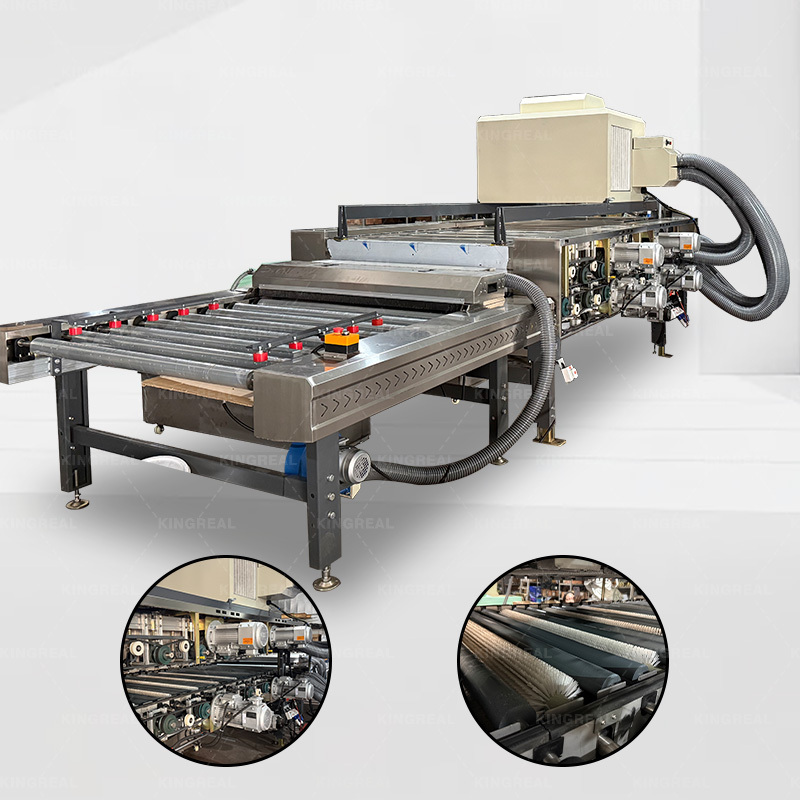

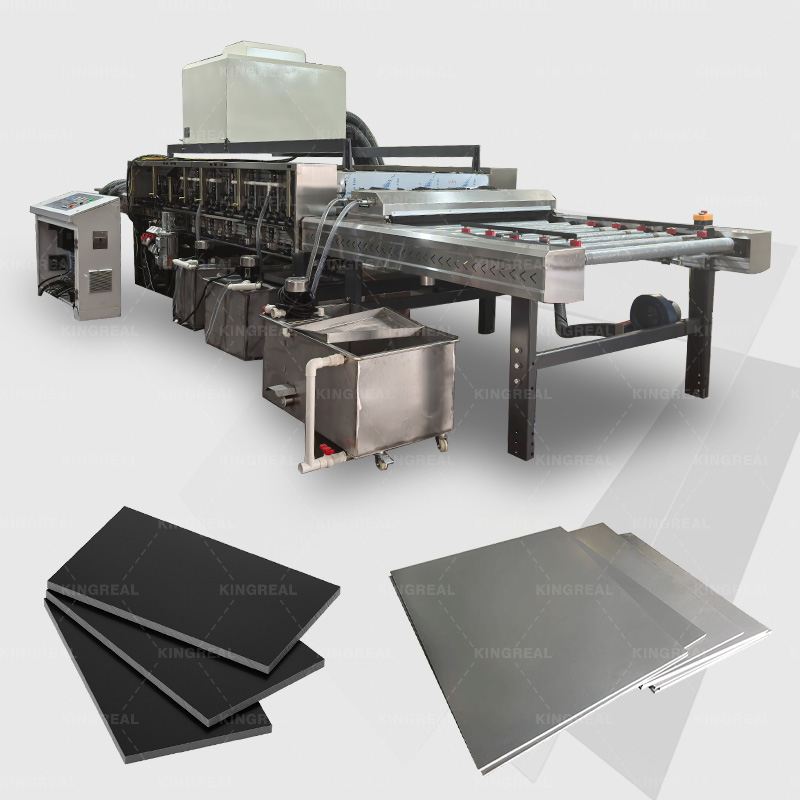

This aluminum sheet washing machine is specifically designed for the cleaning and drying of plates with greater thickness, facilitating the degreasing, dust removal, and surface cleaning of various large-scale work-pieces. Through a multi-stage process—comprising conveying, brush scrubbing, rinsing, air knife blowing, and hot air drying—the aluminum sheet cleaning machine achieves an integrated workflow ranging from pre-washing and deep cleaning to rapid drying. Users only set the plates on the conveyor table; the aluminum sheet washing machine then automatically carries them into the brush washing chamber, where brushes spraying cleaning solution scrub the surfaces. Following this, the plates go into the rinsing chamber for a second cleaning with tap water combined with high-speed brushes. Finally, they undergo hot air drying to eliminate water and pass through high-pressure air knives, therefore reaching a high-standard cleaning outcome free of oil stains, water marks, and particle contamination. Particularly, the KINGREAL CEILING MACHINERY Series aluminum sheet washing machines have remarkable cleaning ability, therefore eliminating tenacious oil stains, dirt, broken glass, and other alien material from panel surfaces. Furthermore, they achieve an operating speed of 12 m/min—far exceeding the performance of most standard aluminum sheet cleaning machines currently available on the market.

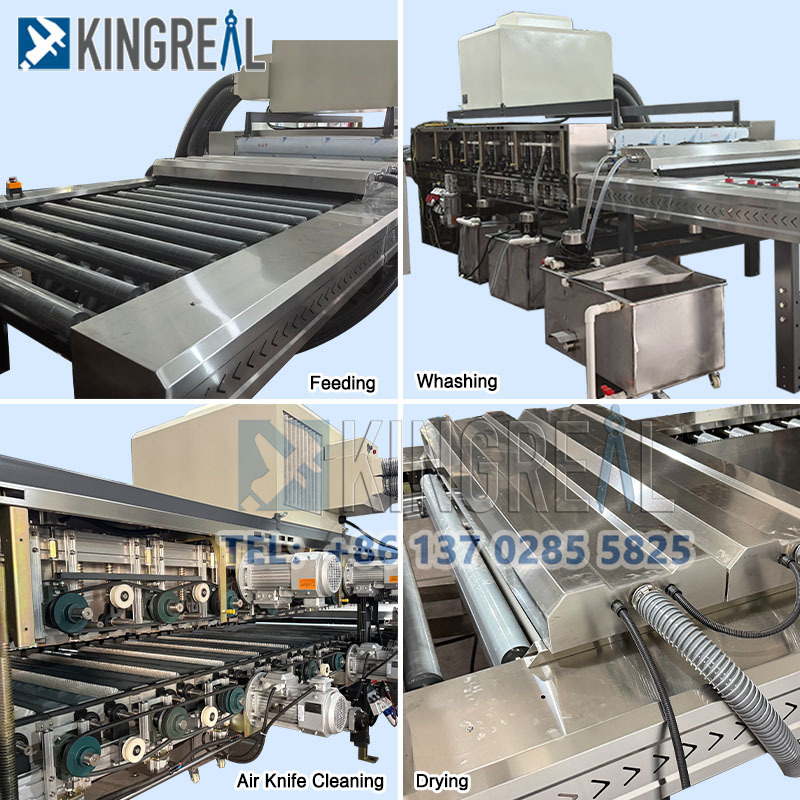

Working Process of Aluminum Sheet Washing Machine Automatic Feeding > Conveying > Brush Washing > High-Pressure Air Knife Drying > Drying > Discharge > Automatic Palletizing |  |
Parameters of Aluminum Sheet Washing Machine
| Maximum Plastic Plate Width | 1200 mm (Effective maximum: 1350 mm) |
| Minimum Plastic Plate Dimensions | 400 mm x 400 mm (Limited to single-row feeding positioned on the left or right side) |
| Plastic Plate Thickness | 3 mm – 15 mm (Digitally displayed) |
| Speed Range | 12 m/min |
| Main Drive & Brush Speed Adjustment Method | Variable Frequency Control (VFC) |
Key Design About Aluminum Sheet Washing Machine
| 1)Water-Saving Design. KINGREAL CEILING MACHINERY team has implemented a water recirculation design within the washing section of the aluminum sheet cleaning machine. Cleaning water is continuously circulated via pumps, thereby minimizing overall water consumption during production and reducing the enterprise's water resource usage and operating costs. Additionally—acknowledging that different enterprises have varying requirements regarding cleaning water purity—the aluminum sheet cleaning machine is equipped with easy-to-operate water tank replacement and drainage mechanisms. This enables consumers to regularly change or clean the filtration systems and water tanks based on their own operating needs, therefore guaranteeing sustained and superior long-run cleaning outcomes.
2)Lifting Platform Design. KINGREAL CEILING MACHINERY has specifically designed an adjustable lifting platform for aluminum sheet cleaning machines. By adjusting the height of this platform, the aluminum sheet cleaning machine can flexibly accommodate plates of varying thicknesses, ensuring uniform contact between the brushes and the plate surface for thorough and effective cleaning. Moreover, the user-friendly, modular architecture of the lifting platform makes it easy to disassemble and reassemble, hence simplifying access for component replacement and routine maintenance and reducing downtime for repairs. |  |
 | 3)Cleaning of Irregular and Textured Plate Edges. The market features a wide variety of irregularly shaped plates with uneven edges or textured contours—types that traditional aluminum sheet washing machines often fail to clean adequately. To address this challenge, KINGREAL CEILING MACHINERY aluminum sheet cleaning machines incorporate a high-pressure air knife edge-brushing process, supplementing the standard two-stage water rinse and high-speed brush cleaning sequence. After the upper and lower surfaces of the plate have been cleaned by the brushes, the air knives target the uneven edges with powerful blasts of air to assist in debris removal. Deep cleaning of angles, notches, and uneven surfaces is guaranteed by this, therefore ensuring that the whole surface of the final product meets high levels of cleanliness. |
Advantages of Aluminum Sheet Washing Machine
1)High Speed.
While traditional aluminum sheet cleaning machines typically operate within a speed range of 0–7 m/min, the KINGREAL CEILING MACHINERY aluminum sheet washing machine boosts this performance to a maximum speed of 12 m/min. This capability is ideally suited for high-volume production environments, effectively meeting the growing market demand for rapid delivery, while consistently maintaining stable and effective cleaning results even at high operating speeds.
2)Deep Cleaning.
The aluminum sheet washing machine features a primary wash tank capable of utilizing specialized detergents, offering the flexibility to select between cold water or hot water (50–60°C) to enhance degreasing efficiency. Through a three-stage cleaning process—comprising an initial brush wash, a high-speed brush rinse chamber, and air-knife edge cleaning—integrated with a hot-air drying system, the board washer achieves deep surface cleaning and rapid drying of materials within a short time-frame. This makes it particularly well-suited for industries with stringent cleanliness requirements, such as furniture manufacturing, electronics tray production, and decorative panel processing.
3)Compatibility with Large-Format Panels.
This board washer is engineered to handle materials of significant thickness and large dimensions, accommodating a wide range of widths and thicknesses to meet production demands for oversized, extra-thick, and long panels. Whether processing standard-sized panels for mass production or handling large-format custom components, the aluminum sheet cleaning machine operates with exceptional stability while consistently ensuring superior cleaning results.
4)Balancing Economy and Environmental Responsibility.
Featuring a water-recycling design, durable construction materials, and a highly maintainable structure, the board washer effectively minimizes operating costs while delivering significant environmental benefits. The combination of aluminum alloys, high-grade stainless steel, and a replaceable filtration system serves to reduce resource waste and extend the overall service life of the aluminum sheet washing machine.
Structural Features of Aluminum Sheet Washing Machine
1 | Modular Aluminum Alloy Construction | The entire aluminum sheet washing machine features a modular aluminum alloy assembly design. This design guarantees a long service life and great corrosion and distortion resistance by doing away with the notion of total obsolescence. This design enables future growth or local component replacement in addition to ensuring the lightweight characteristic and structural integrity of the aluminum sheet cleaning machine. The result is a highly efficient and energy-saving operational experience, capable of reducing overall energy consumption by approximately 70%. |
2 | Fully Vulcanized Rubber Coating | The aluminum sheet cleaning machine's conveying system utilizes rollers fully coated with vulcanized rubber. This design effectively enhances friction and anti-slip properties, ensuring stable positioning during the transport of plates made from various materials and of different thicknesses. It minimizes the risk of slippage or surface abrasion, thereby improving the consistency and quality of the cleaning process. |
3 | Stainless Steel Water Catchment Components | All components that come into contact with the cleaning water are manufactured from high-quality stainless steel. This material offers superior resistance to corrosion, acids, alkalis, and high temperatures, thereby extending the aluminum sheet cleaning machine's service life. Additionally, it simplifies cleaning and maintenance procedures while safeguarding the purity of the cleaning water against secondary contamination. |
4 | Integrated Lifting Mechanism for Cleaning and Drying Sections | With a maximum lift height of 350 mm, the washing and air-drying areas of the aluminum sheet washer use an integrated lifting mechanism. This simplifies repair access, regular cleaning, and interior component replacement. The flexible, space-efficient construction enables for easier and more practical maintenance chores to be completed. |
5 | Brushes and Drive System | The brush roller assembly features a 150mm diameter steel shaft, compatible with a wide variety of load-bearing materials—including washable plastic pallets, standard pallets, and plastic corrugated boards. Utilizing variable frequency drive (VFD) control, the system allows for flexible adjustment of the brush's linear speed and rotational velocity to meet specific process requirements, thereby ensuring that the distinct cleaning needs of various materials are fully satisfied. |
6 | Four Pairs of Specialized Aluminum Alloy Air Knives | Designed to deliver concentrated airflow and provide high-efficiency drying, the aluminum sheet cleaning machine has four sets of specially created aluminum alloy air knives—including two sets of straight-edge knives. Incorporating a temperature control unit that can be toggled on or off depending on process needs, the air knife system may also be linked with a heating element to assist hot-air drying, therefore guaranteeing that plastic pallets and boards come completely dry and without water spots. |
7 | Blower and Filtration System | The blower's air intake chamber is fitted with an air filtration screen, ensuring both high airflow volume and the intake of clean air. The blower housing is mounted above the main working chamber, with the air filter positioned on the side for convenient daily inspection and cleaning. This combination of strong airflow and clever filtration design greatly lowers interior air duct contamination and increases the operational lifetime of the blower unit. |
8 | Main Drive and Speed Control | The main transmission system employs helical gears, ensuring smooth operation and low noise levels. Coupled with VFD-based speed control and a digital display interface, the system enables precise regulation of the conveyor speed. In the washing section, the brush rollers are driven by independent upper and lower vertical belt assemblies—each utilizing VFD control—to ensure a smooth and reliable cleaning process capable of meeting the rigorous standards required for specialized plastic pallets. |
9 | User-Friendly Operation and Maintenance | The aluminum sheet washing machine features a streamlined control interface utilizing mechanical buttons and digital displays, making operation simple and intuitive for workers. Routine maintenance and troubleshooting are significantly facilitated. Furthermore, the control console is equipped with an emergency stop button and multiple safety interlocks to ensure a secure production environment. |
10 | Side-Mounted Water Tank Design | The aluminum sheet washing machine's water tank is positioned on the side of the unit, allowing for easy access during cleaning, water changes, and inspections. This arrangement ensures that the water quality remains clean during prolonged periods of operation, thereby helping to maintain consistent cleaning performance and extend the overall service life of the aluminum sheet cleaning machine. |
