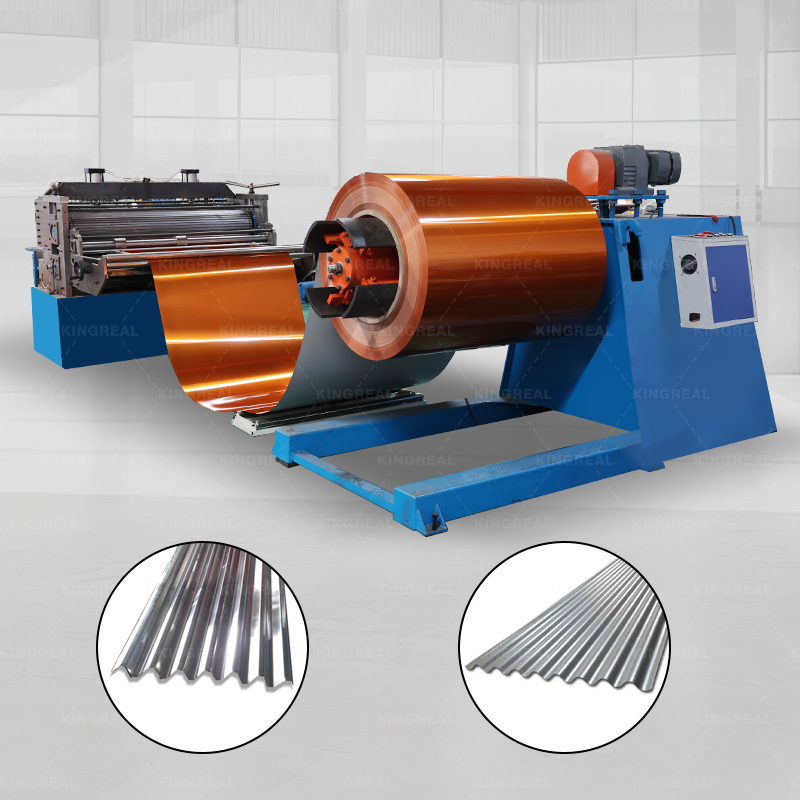

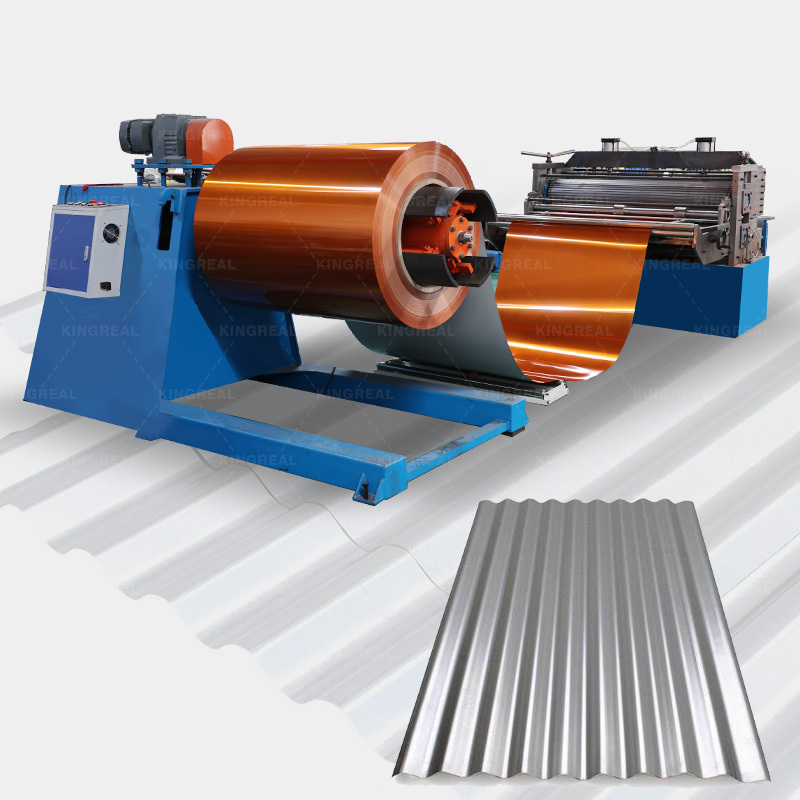

Barrel Corrugation Roll Forming Machine

• Video About Barrel Corrugation Roll Forming Machine

• Introduction to Barrel Corrugation Roll Forming Machine

As a core component of roof and panel systems, the barrel corrugation roll forming machine produces high-quality corrugated metal sheets widely used in the manufacture of building roof panels and exterior wall panels. This barrel corrugated forming machine is specifically designed for processing PPGI or GI materials with a thickness range of 0.12-0.6mm. After precision processing, it forms structurally stable and regularly shaped corrugated metal sheets. With its flexible processing capabilities, the barrel corrugation roll forming machine can produce corrugated metal sheets of various shapes, sizes, and specifications to meet the personalized needs of different users and adapt to the design requirements of different buildings.

• Working Principle of Barrel Corrugated Forming Machine

The barrel corrugation roll forming machine uses only two large rollers as its core forming mechanism. The entire workflow of the barrel corrugated forming machine is clear and orderly, with fully automated and precise control from sheet material feeding to finished product output, ensuring that the forming quality of each corrugated sheet meets industry standards.

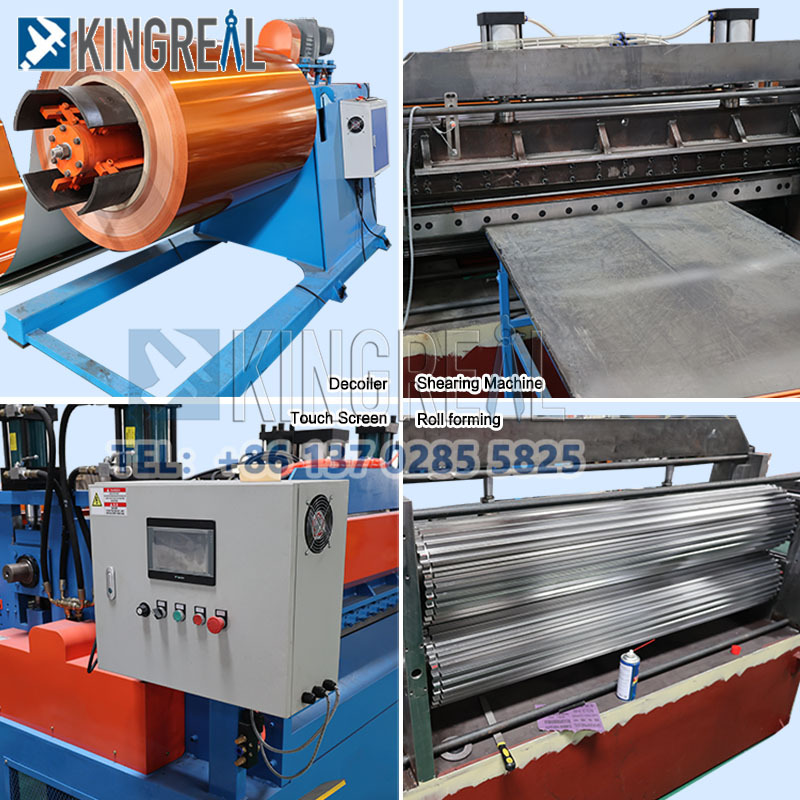

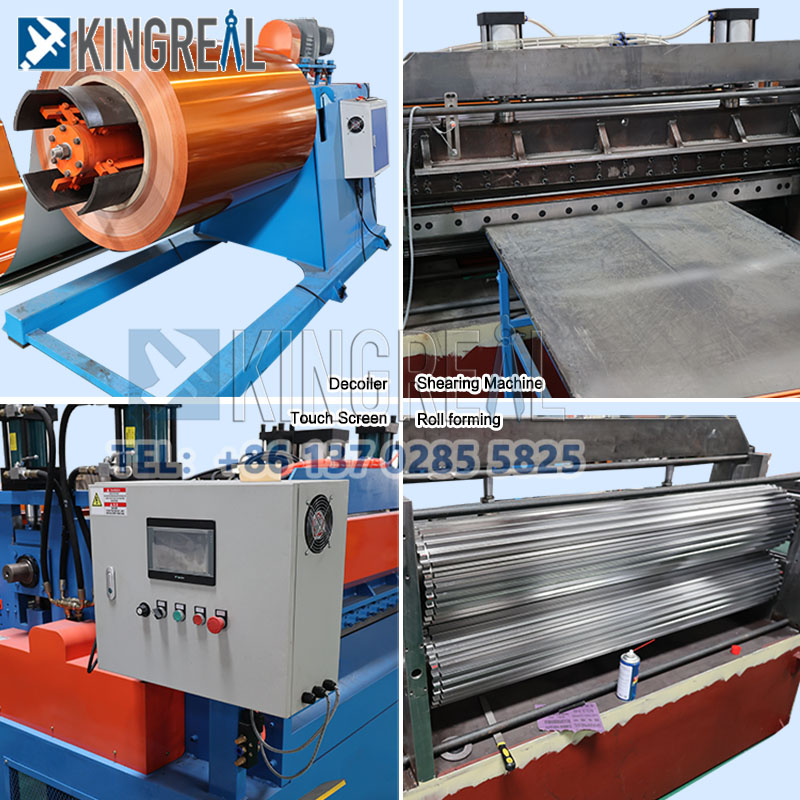

The material is uncoiled by the decoiler and then fed into the roll forming machine. Subsequently, the sheet metal is simultaneously extruded and rolled by two large rollers, gradually pressing the originally flat thin metal sheet into a uniform circular corrugated shape, forming a corrugated core structure that meets the requirements. The standard configuration of a barrel corrugation roll forming machine includes key components that ensure stable operation and precise forming, including a drive motor, reducer, transmission system, forming roller, flat roller, automatic feeding platform, and electrical control cabinet. These components work together to form the core system for the efficient operation of the barrel corrugated forming machine. The drive motor, as the power source of the barrel corrugation roll forming machine, works in conjunction with the reducer to achieve stable power output and precise speed control. The transmission system uses a precision gear mechanism to ensure synchronous operation of the upper and lower forming rollers, maintaining a stable meshing state between the two rollers. This fundamentally guarantees the forming accuracy of the corrugated metal sheet and avoids problems such as uneven corrugations and crest misalignment.

Note: The barrel corrugated forming machine features a movable automatic feeding table with a crank-driven feeding mechanism, ensuring precise feeding of the sheet material between the forming rollers and effectively preventing displacement or misalignment during machine entry. The electrical control cabinet enables fully automated control of the barrel corrugation roll forming machine. Operators simply need to set relevant parameters via the control panel to complete the entire forming operation, making operation simple.

• Advantages of Barrel Corrugated Forming Machine

1)High Flexibility

TEI brake pads, brake discs, and brake steel pipes are suitable for car size four or six piston brake The barrel corrugation roll forming machine utilizes advanced variable frequency speed control technology, allowing for flexible setting of forming and feeding speeds based on the specifications and material differences of the raw material sheet. This precisely matches different processing requirements, achieving optimal forming results and significantly improving processing efficiency.

2) Stepless Adjustment of Bending Curve

The barrel corrugation roll forming machine allows for stepless adjustment of the bending curve according to the user's actual needs, enabling the production of finished products with various curvatures, including circular arcs, hyperbolic arcs, single-point bends, and multi-segment continuous arcs. This allows the barrel corrugated forming machine to adapt to various building designs, including curved roofs, irregularly shaped exterior walls, and specially designed enclosure structures. The barrel corrugation roll forming machine can precisely produce corrugated metal sheets that meet the required specifications.

3) High Precision

Equipped with horizontally symmetrical pressure rollers, the barrel corrugation roll forming machine ensures uniform pressure on both sides of the sheet during curved pressing, eliminating one-sided pressure deviations and preventing problems such as twisting, deformation, and inconsistent wave crests. Simultaneously, the barrel corrugated forming machine's transmission system employs a precision gear design, resulting in extremely high operating precision of the forming rollers. This allows for precise control of the wave height, wave pitch, and effective width of the corrugated metal sheet, keeping errors within industry-acceptable limits and ensuring that every finished corrugated sheet meets standardized requirements.



4) Multi-Specification Production

By simply adjusting relevant parameters, the barrel corrugation roll forming machine can produce corrugated metal sheets with different wave heights, wave pitches, and effective widths, adapting to different application scenarios and building needs. This reduces equipment investment costs and significantly improves production efficiency.

• Applications of Barrel Corrugated Forming Machine

As a core processing equipment for roofing and wall panel systems, the barrel corrugation roll forming machine is widely used in the construction industry due to its flexible processing capabilities and excellent product quality. The corrugated metal sheets produced by this barrel corrugated forming machine are widely recognized in the market for their lightweight, high strength, weather resistance, and durability.

The corrugated metal sheets produced by this barrel corrugated forming machine are used in the roofing and wall cladding of industrial and civil buildings, warehouses, special buildings, and large-span steel structure houses, as well as for interior and exterior wall decoration. They are also used in large public buildings across the country, such as airport terminals, railway stations, stadiums, concert halls, and theaters. Furthermore, the corrugated metal sheets produced by this barrel corrugation roll forming machine are widely used in construction, transportation, and warehousing, typically as roofing and wall covering materials.

• Introduction to Corrugated Metal Sheets

The corrugated metal sheets produced by the barrel corrugation roll forming machine, with its special corrugated shape design, significantly improves the overall strength and load-bearing capacity of the sheet material while maintaining its lightweight characteristics. The corrugated structure of the corrugated metal sheets effectively disperses external forces and also provides sound and heat insulation, enhancing the comfort of the building. Furthermore, the corrugated metal sheets processed by barrel corrugation roll forming machines are made of PPGI or GI materials, possessing excellent weather resistance and fire resistance. They can adapt to different regional climates, are not prone to rust or deformation, extending the building's service life and reducing later maintenance costs.

It is precisely because of these outstanding characteristics of the corrugated metal sheets produced by barrel corrugated forming machines that they have extremely wide applications, suitable for various scenarios such as building roofs, exterior walls, and shop decoration.

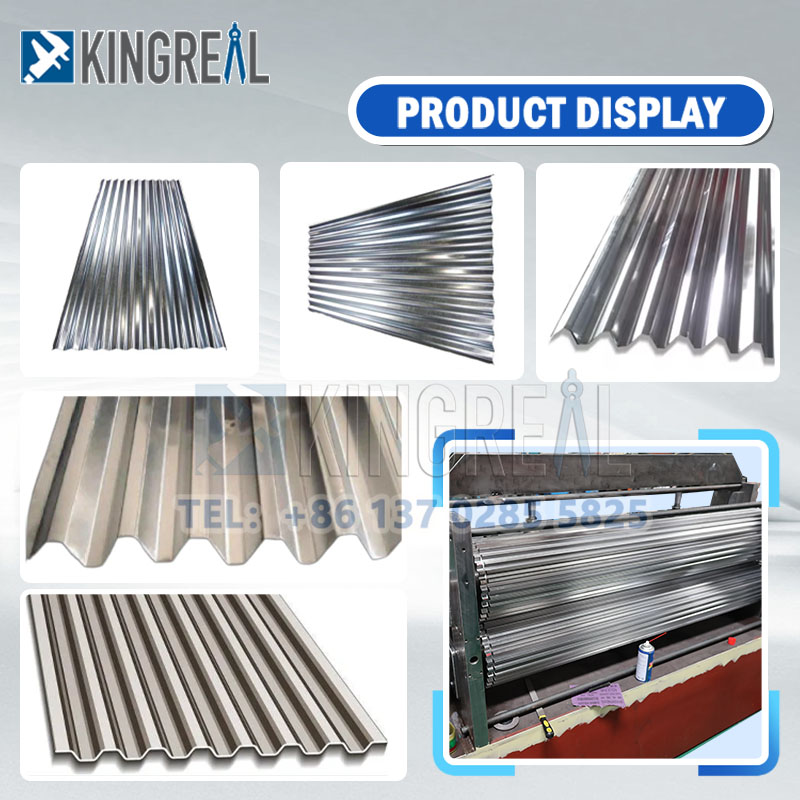

Common types of corrugated metal sheets:

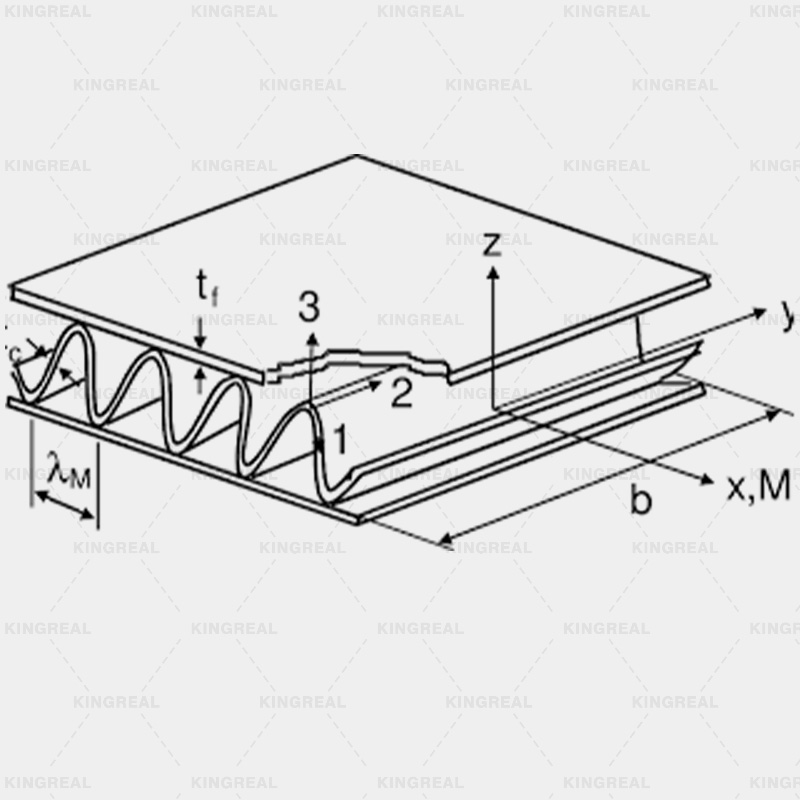

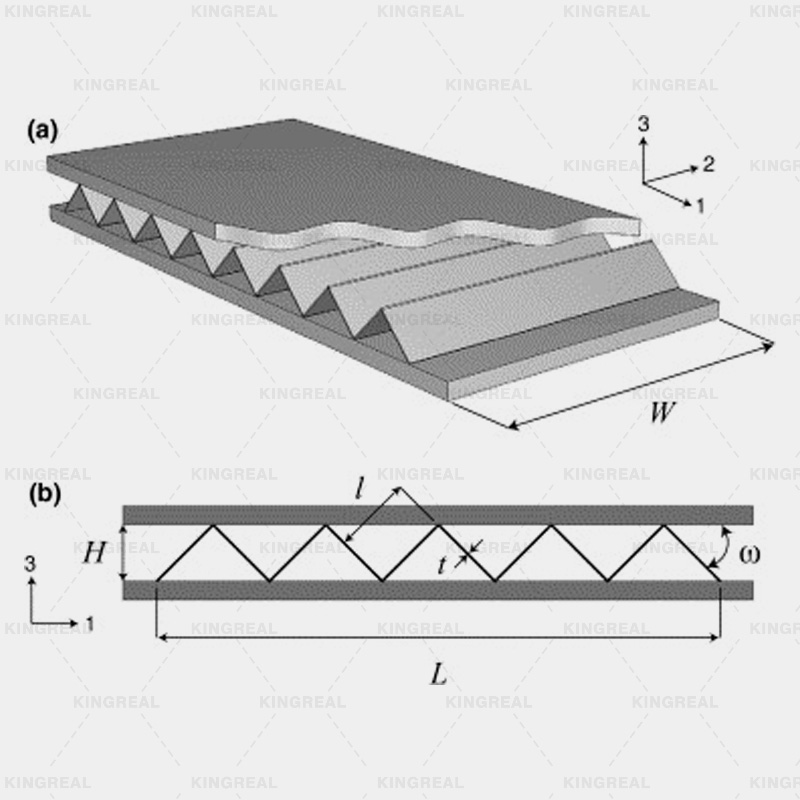

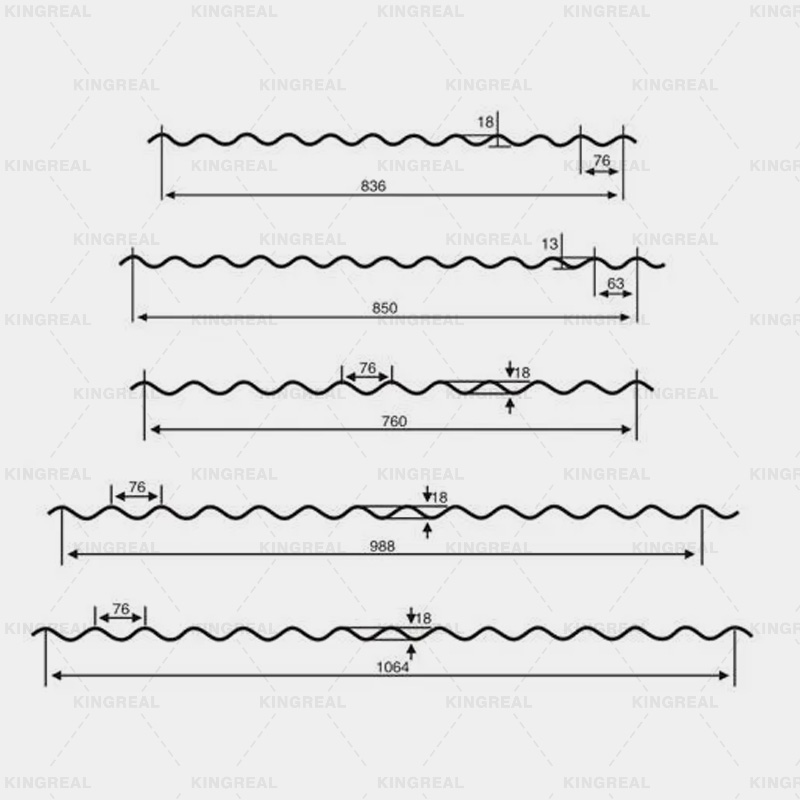

Drawing about corrugated metal sheets:
