Differences Between Baffle And Open Cell Ceiling You Need To Know
2025-11-06 17:00
Baffle ceilings are a popular new type of ceiling material in recent years, featuring open visual space, ventilation, and distinct layers, with a simple and elegant style. Furthermore, their convenient installation and easy disassembly have led to their widespread use in large shopping malls, subway stations, and international business buildings. Although open cell ceilings are also an emerging aluminum ceiling material and may appear similar, there are significant differences between them. In fact, aluminum baffle ceilings and aluminum grilyato ceilings are two different ceiling decoration solutions, each with its own unique advantages and applicable scenarios. This article will detail the differences between baffle ceilings and open cell ceilings.

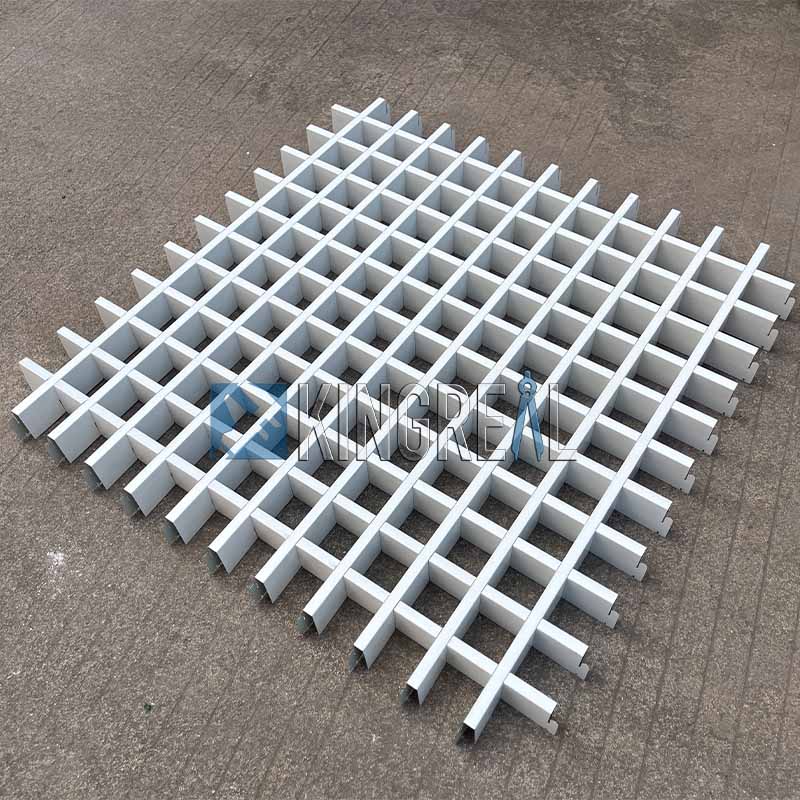

Introduction to Open Cell Ceiling

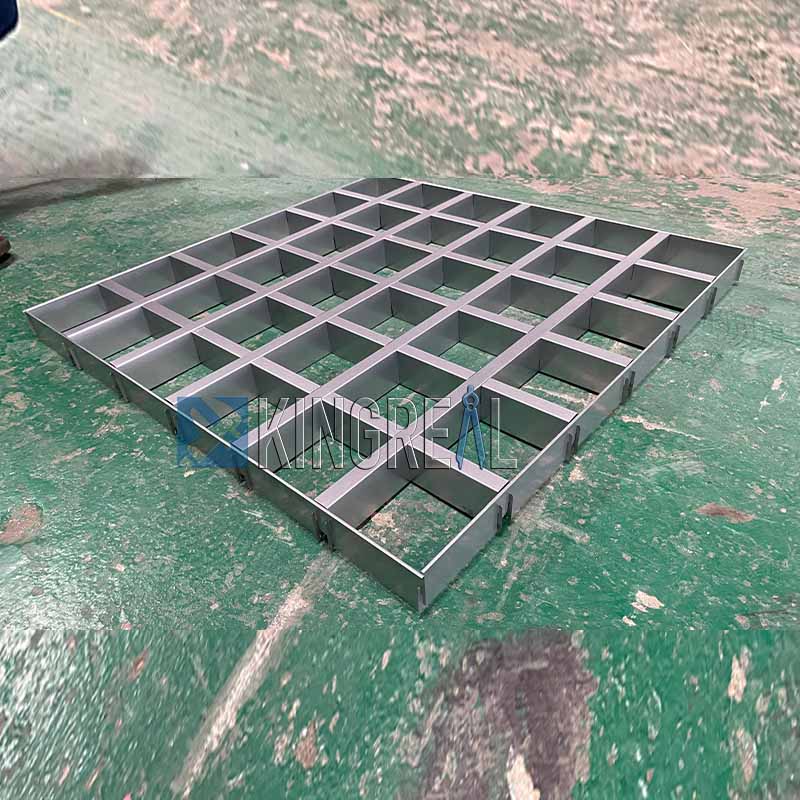

Grilyato ceilings are a type of ceiling decoration structure using an open grid design, produced by an open cell ceiling machine. They consist of detachable square grid units composed of interlaced main and secondary joists. Common specifications call for 600mmx600mm; the primary material is premium aluminum alloy. Commonly employed in public areas including office buildings, airports, and malls, this design offers adequate ventilation and simple maintenance. It can also mix in lighting fixtures, air conditioning vents, and other equipment.

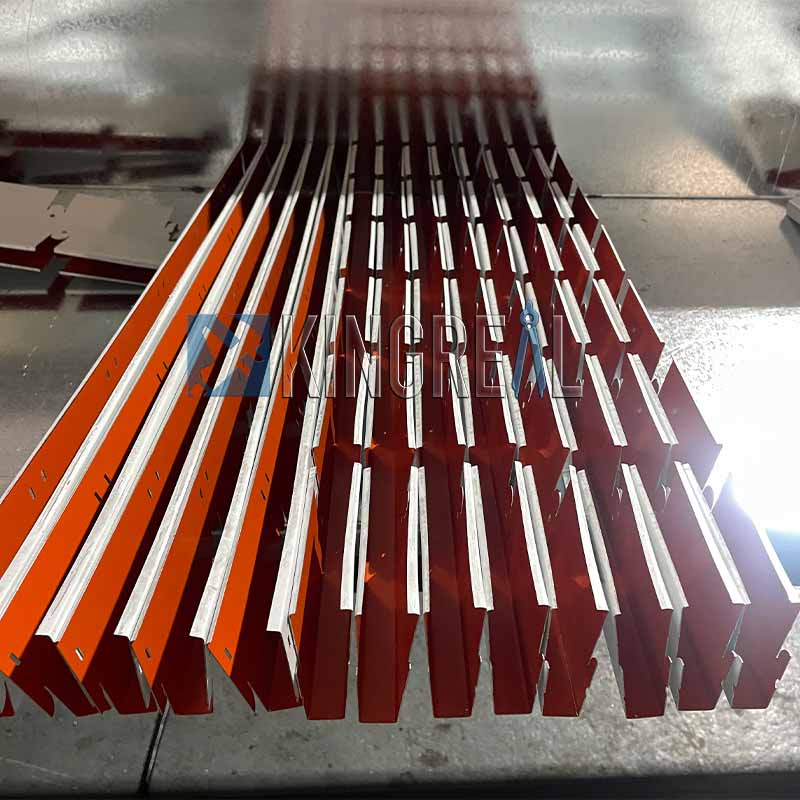

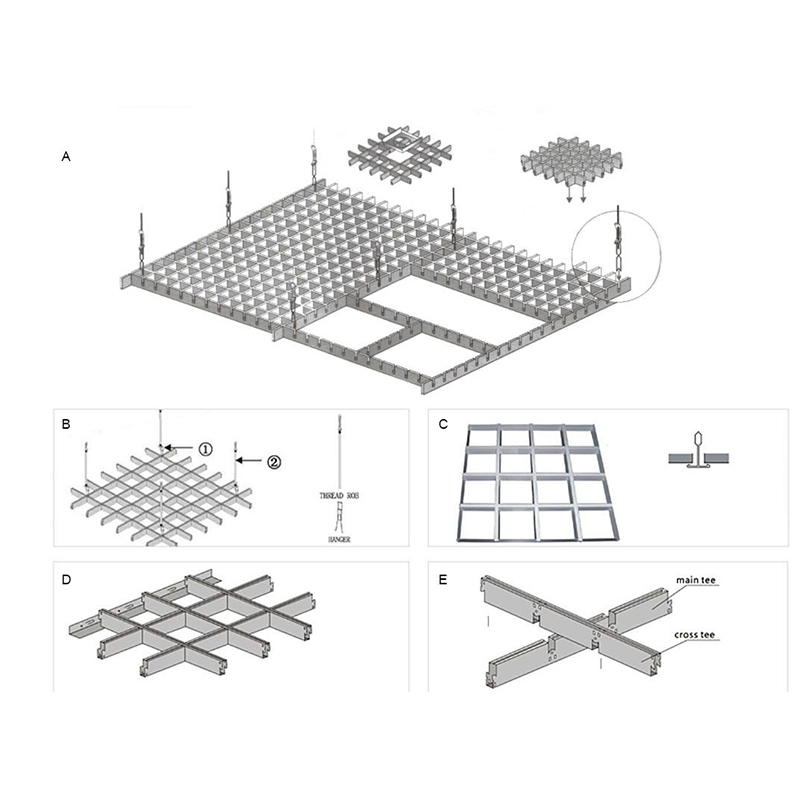

The structure of a grilyato ceiling originates from the interlocking combination of hollow metal strips, initially employing U-shaped and V-shaped keels and butterfly clip fastening techniques. With technological advancements, CNC bending and screwless joints have been gradually introduced, improving flatness and stability. Material treatments have also expanded from basic spraying to powder electrostatic spraying and wire drawing processes, supporting customized colors and built-in sound-absorbing materials. The installation system has been optimized from traditional rod positioning to spring-loaded connection, adapting to light steel keel systems and compatible with shaped panel combinations.
Introduction to Baffle Ceiling

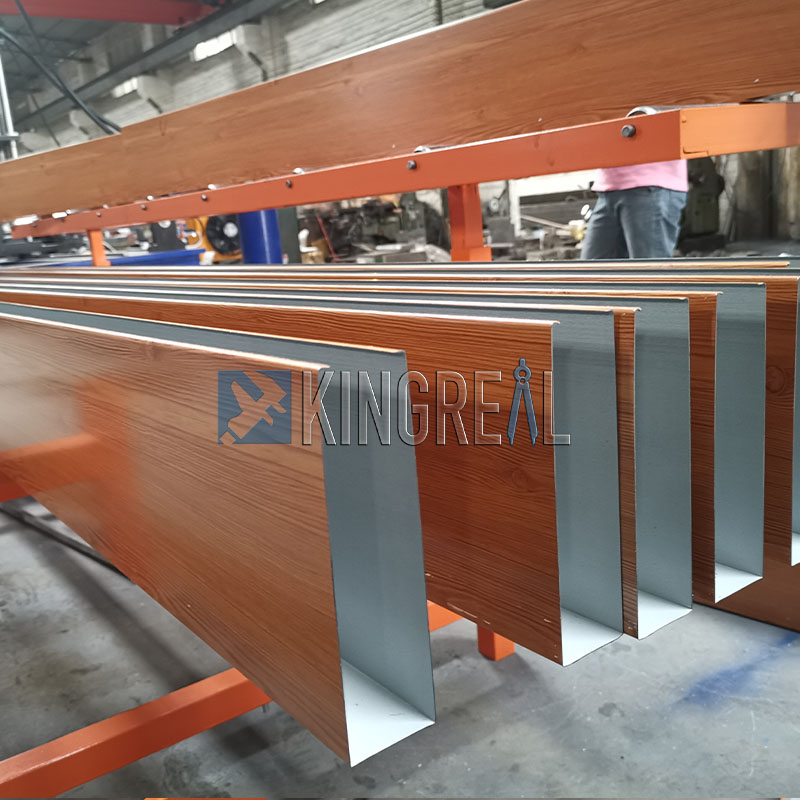

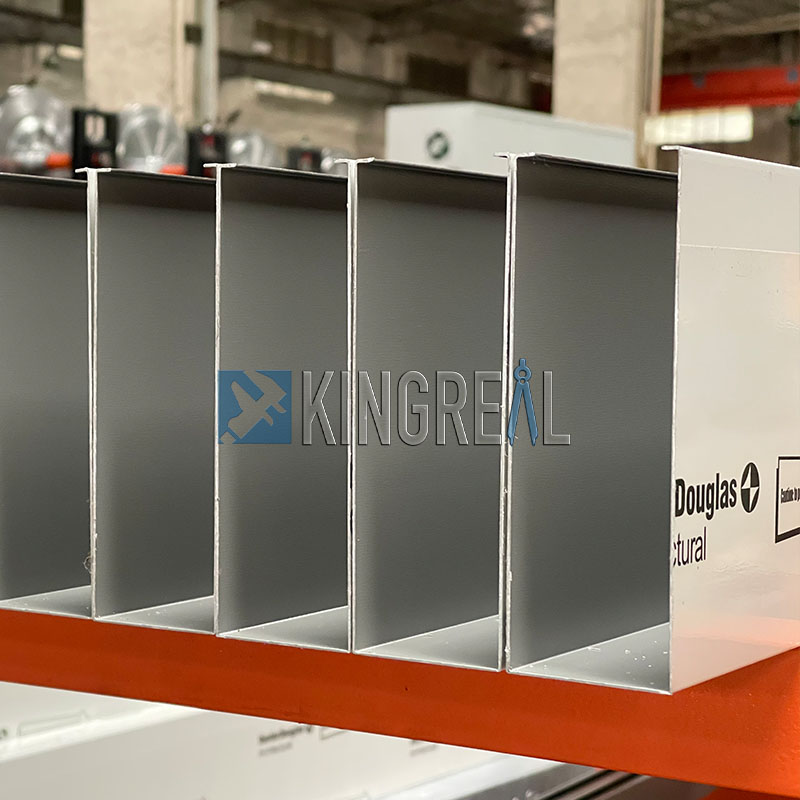

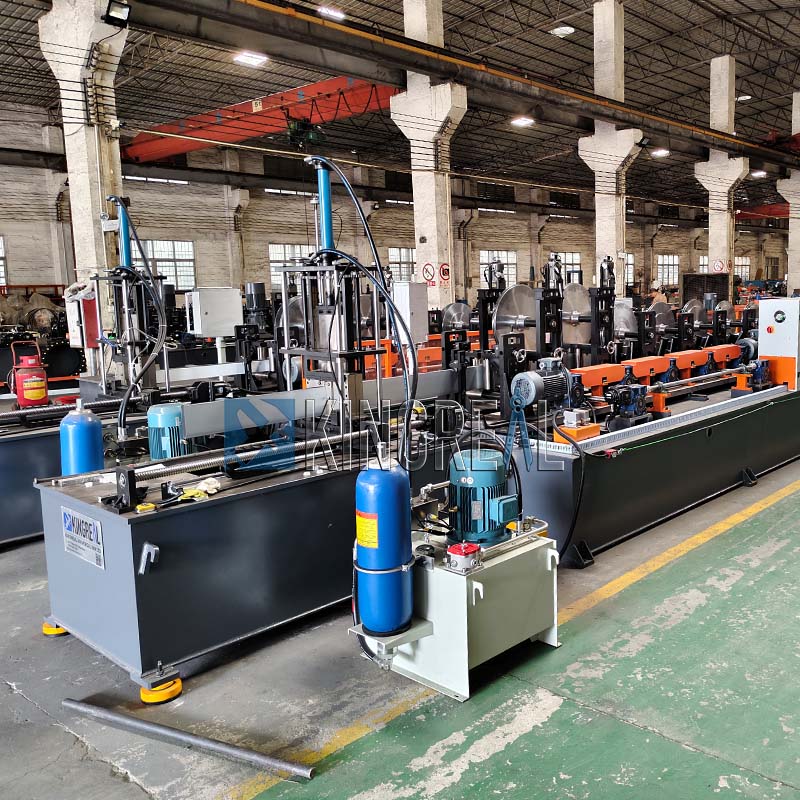

Baffle ceilings are a popular ceiling decoration material in recent years. Made of aluminum alloy, they feature ventilation, simple lines, and distinct layers, making them suitable for both interior and exterior decoration. Baffle ceilings are manufactured using baffle ceiling machines, combined with baffle ceiling carrier machines to form a complete baffle ceiling system.

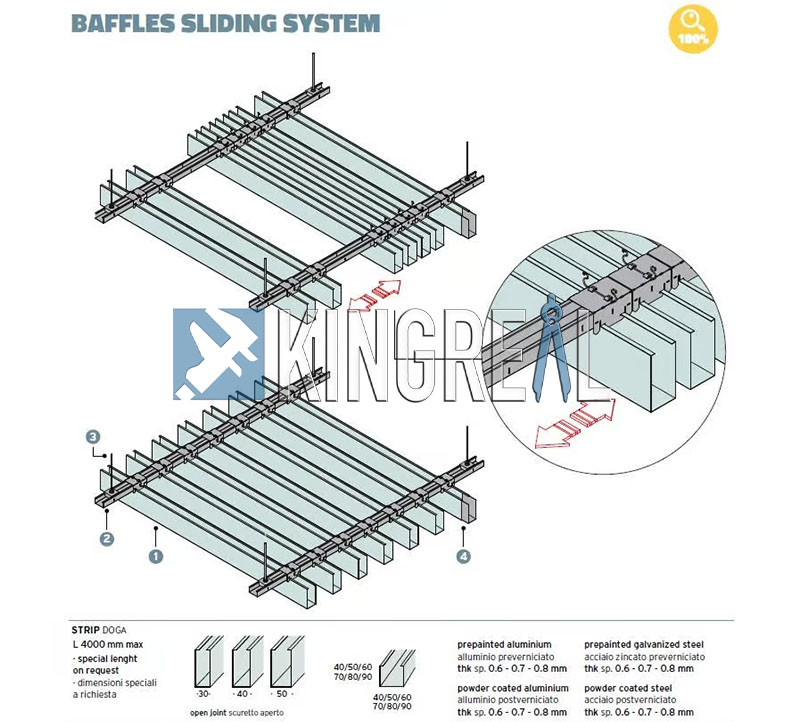

Because of their benefits of simple installation, height-adjustable spacing, and hidden arrangement, aluminum baffle ceilings have been used extensively in public areas like subway stations, shopping centers, and airports since their introduction. With laminated panels providing up to 20 years of resistance to discoloration, its surface treatments include spraying, baked paint, roller coating, and laminating. Installation depends on a light steel keel system, which enables modular construction via triangular keel snap-fit and helps with personal disassembly and maintenance. Materials include alloys of various grades of aluminum; the quality of the base material determines its lifespan. Manufacturers are slowly introducing varied tailored solutions as market demand rises, hence extending its use cases in contemporary decorating.
Technical Details of Grilyato Ceiling & Baffle Ceiling
Technical Details of Grilyato Ceiling
| Types | U-shaped, C-shaped, Pyramid-shaped |
| Grilyato Ceiling Dimensions | 75mm x 75mm, 100mm x 100mm, 150mm x 150mm, 200mm x 200mm, 300mm x 300mm |
| Web Height | 50mm |
| Width | 15mm |
| Thickness | 0.35mm (galvanized steel) / 0.45mm (aluminum alloy) |
| Surface Treatment | Perforated ceiling system uses powder coating (epoxy polyester paint), with a wide range of colors to choose from. |
| Dimensions | Other custom sizes can be confirmed with the factory. |
| Tee Grid | Main keel 3600 mm x 15 mm x 32 mm x 0.30 mm; Horizontal keel 1200 mm x 15 mm x 26 mm x 0.30 mm; Horizontal keel 600 mm x 15 mm x 26 mm x 0.30 mm; Wall Angle 3000 mm x 15 mm x 15 mm x 0.40 mm |
Technical Details of Baffle Ceiling

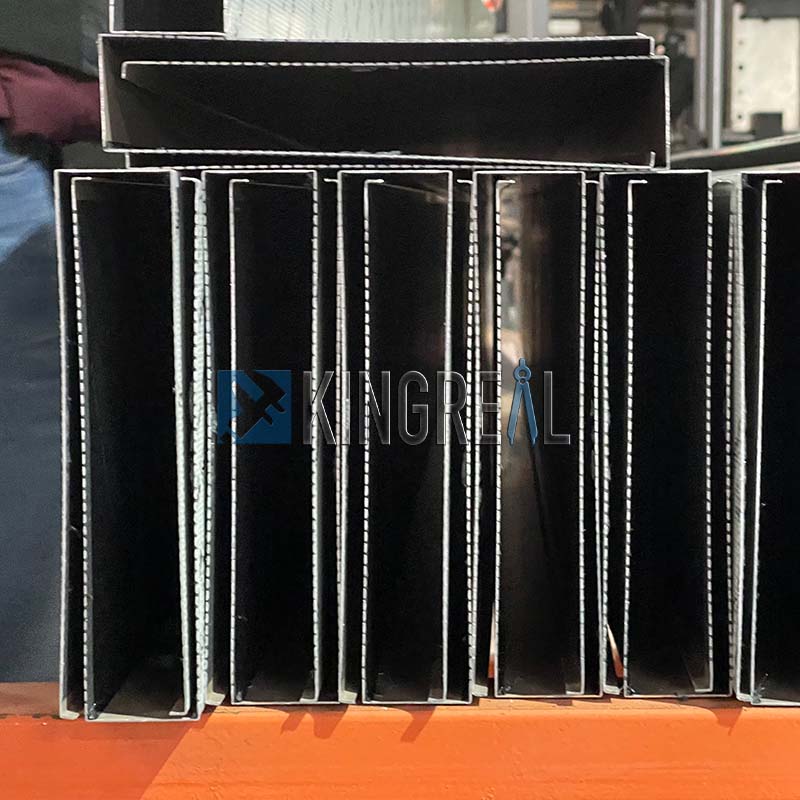

| Types | U-shaped, V-shaped |
| Material | Galvanized steel sheet, aluminum sheet, roller-coated sheet |
| Baffle width | 40 – 80 mm |
| Baffle height | 100 – 500 mm |
| Baffle length | Maximum 2000 mm |
| Standard module | Flexible (in 50 mm increments) |
Advantages of Baffle Ceiling & Grilyato Ceiling
Advantages of Baffle Ceilings
-Enhanced Indoor Acoustics: Sound-absorbing baffle ceilings effectively eliminate echoes and unwanted noise, making the room's sound clearer.
-Enhanced Aesthetics: Baffle ceilings are not only aesthetically pleasing but also improve sound quality, creating a high-end spatial atmosphere.
-Provides Diverse Design Options: Unique baffle ceiling styles can be created according to personal preferences, increasing the visual appeal of the space.
Advantages of Grilyato Ceilings
-Unique Visual Effect: The grilyato ceiling design visually lowers the room height while maintaining the actual volume of the space.
-Easy Installation: Open cell ceiling systems can be quickly installed and dismantled according to the needs of the building space.
-Excellent Ventilation and Lighting: The open structure provides excellent ventilation and light distribution, suitable for spaces with insufficient natural ventilation.
About KINGREAL CEILING MACHINERY

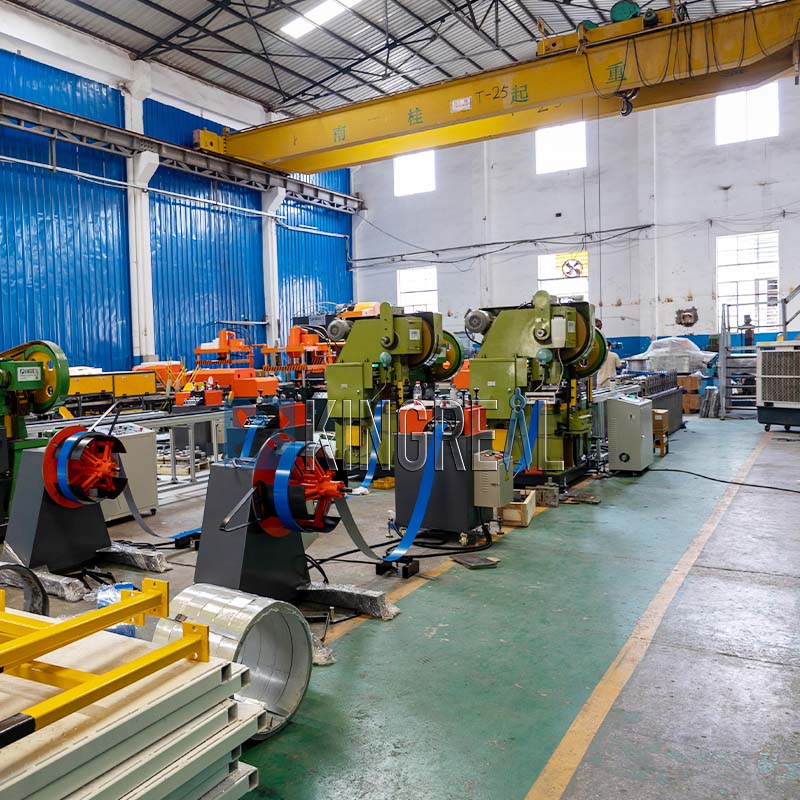

KINGREAL CEILING MACHINERY is an experienced manufacturer of suspended ceiling making machines, capable of designing customized baffle ceiling machines and open cell ceiling machines to meet the specific project needs of customers. KINGREAL CEILING MACHINERY baffle ceiling machines and open cell ceiling machines are characterized by high production speed, stable operation, and the ability to produce various types and specifications of suspended ceilings. Currently, KINGREAL CEILING MACHINERY baffle ceiling machines and open cell ceiling machines are bringing significant profits to customers' factories in Ukraine, Russia, India, Vietnam, Turkey, Italy, the UK, and other countries.
For customized baffle ceiling machine or open cell ceiling machine solutions, please feel free to contact KINGREAL CEILING MACHINERY!
