Acoustic Metal Baffle Ceiling Machine
- KINGREAL CEILING MACHINERY
Video About Baffle Ceiling Machine
Description Of Baffle Ceiling Machine
KINGREAL CEILING MACHINERY Baffle Ceiling Machine can produce sound baffle ceilings with perforation which allows u baffle ceiling more beautiful and perform better in soundproofing. This baffle ceiling making machine is compatible with pre-painted and pre-perforated raw material coils. And this baffle ceiling machine has the characteristics of fast production, stable operation, and adjustable production parameters. |  |
Working Process of Baffle Ceiling Machine

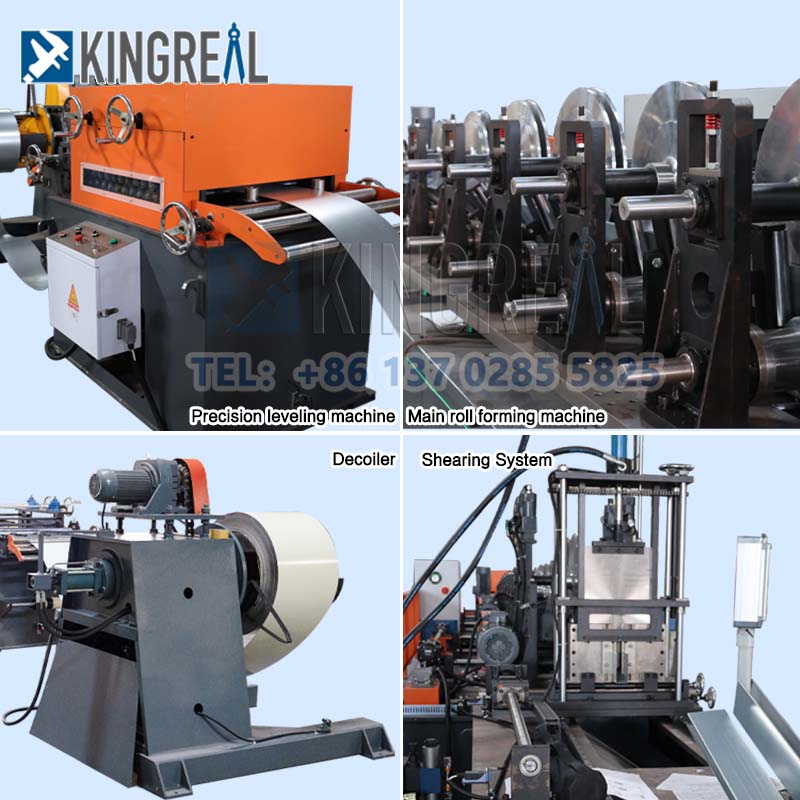

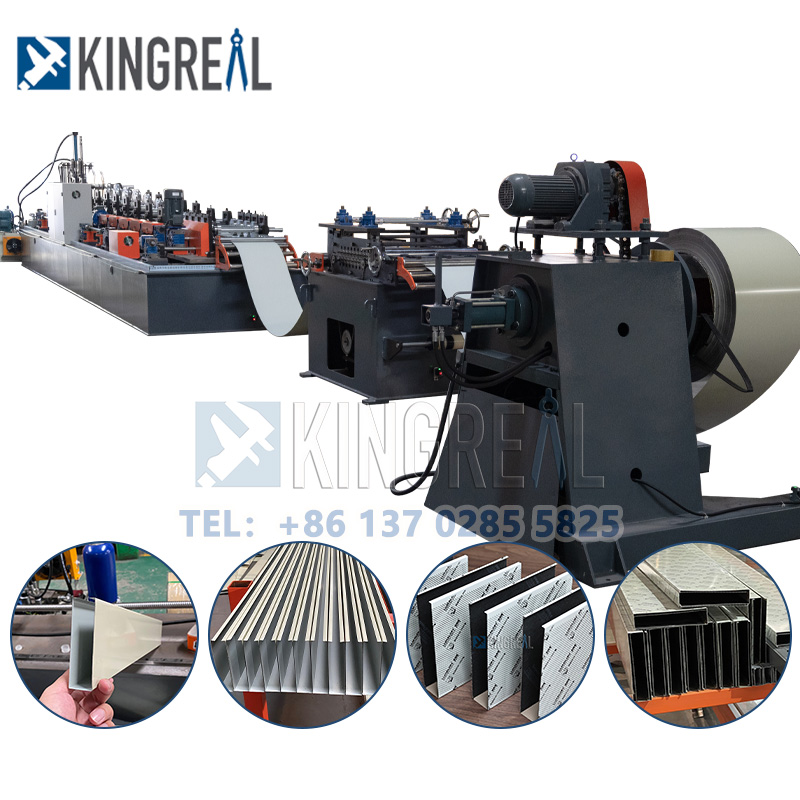

Decoiler -- Precision Leveling Machine --Roll Forming Machine --Cutting Station
Parameter of Baffle Ceiling Machine
| Baffle Ceiling Making Machine | |
| Material | GI Steel or Aluminum Coils |
| Material Thickness | 0.4-0.7mm for GI Steel Coil, 0.4-1.1mm for Aluminum Coi |
| Length | 1-8m |
Length Tolerance | ±1mm, when length is more than 3m |
Production Speed | 0-30m/min, adjustable by servo motor |
Combination With Metal Perforation Machine
How to produce an acoustic baffle? The production process is very simple. You only need to equip a metal punching press on the basis of the baffle ceiling machine to fully automatically complete the operation from raw materials to the forming of acoustic baffles. KINGREAL CEILING MACHINERY Full Automatic Metal Perforated Machine is used for producing different kinds of perforation coil or panel, raw material can be stainless steel, alloy aluminum and galvanize steel etc. The punched coils can be wound up and used as punched raw material for the acoustic baffle forming process. |  |
Main Features of Baffle Ceiling Machine
(1) Automatic Width Adjustment
KINGREAL CEILING MACHINERY baffle ceiling machines can produce different lengths and widths of sound baffle ceilings in one machine. The sizes are controlled by the rotate encoder and it can be set on the touch screen. Acoustic baffle ceilings are available from the smallest sizes (30-150mm) to a maximum of 300mm height. Clients can flexibly choose their product sizes.
(2) Following Shearing Station for Baffle Ceiling Machine
KINGREAL CEILING MACHINERY equipped a hydraulic following shearing station in a baffle ceiling machine, this baffle ceiling making machine can reach up to 30m/min production speed, highly increasing the production efficiency.

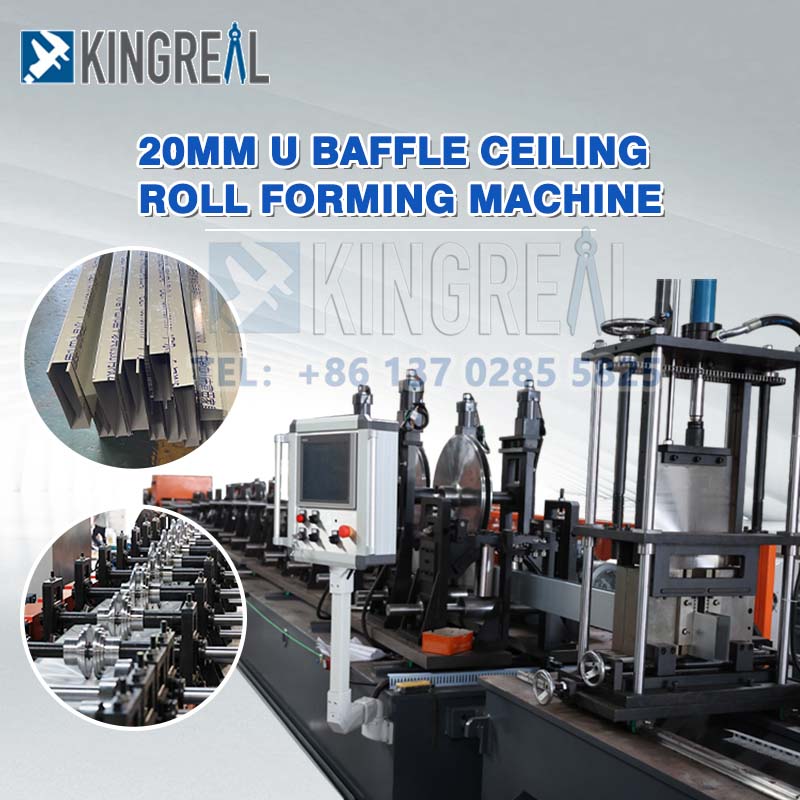

(3) High Precision Forming for Baffle Ceiling Machine
This baffle ceiling making machine is featured high-precision Cr12MoV-mold-steel-made rollers, with more than 14 roller stations, raw material coil is cold roll formed into sound baffle ceilings. And PLC system to precisely control each rolling station to accurately form.
Installation Drawing About Baffle Ceiling

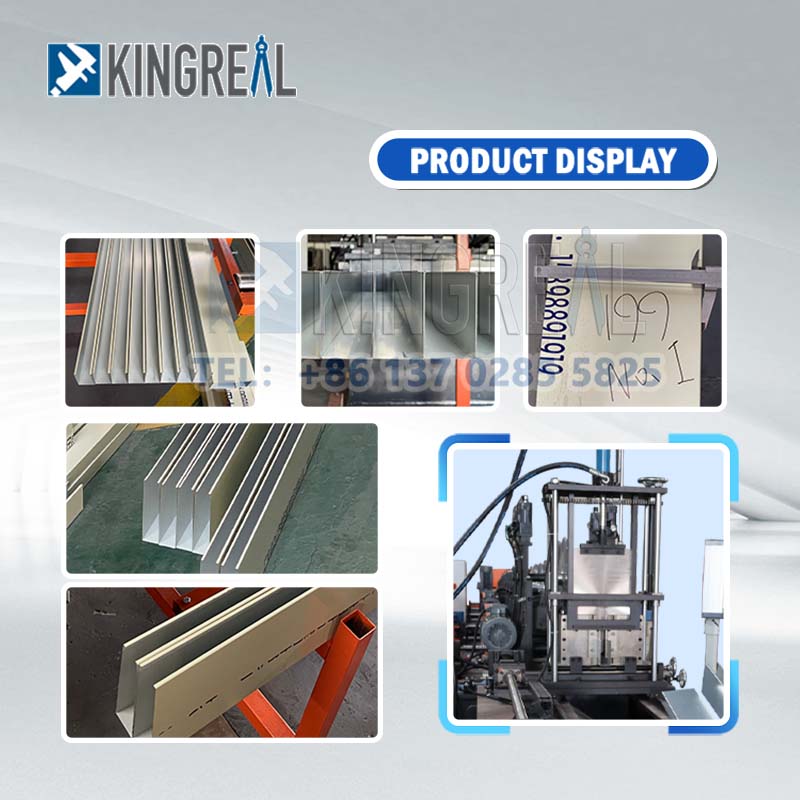

Product Measurement
KINGREAL CEILING MACHINERY baffle ceiling machine can produce baffle ceilings of different heights and specifications, and the finished products produced by KINGREAL CEILING MACHINERY baffle ceiling machine have high consistency under the same parameters. KINGREAL CEILING MACHINERY baffle ceiling making machine is often reported by customers as "it can produce baffle ceilings with good precision and quality."
Complete Suspended Ceiling Machine Solution
With more than 20 years of experience in the suspended ceiling machine manufacturing market, KINGREAL CEILING MACHINERY has not only accumulated rich experience in the field of baffle ceiling making machines, but the successful sales of the other suspended ceiling machines have also earned KINGREAL CEILING MACHINERY a good reputation around the world:
1. Open Cell Ceiling Machine
2. Linear Strip Ceiling Machine
3. Metal Ceiling Carrier Machine
How KINGREAL CEILING MACHINERY Ensures The Quality of Beffle Ceiling Machine?
※ Establish a strict quality system
In order to better control the quality of the machine, KINGREAL CEILING MACHINERY has established its own factory and technical team. KINGREAL CEILING MACHINERY has established standardized work process standards to ensure that the machine maintains a high standard from manufacturing to debugging. From the selection of parts to the debugging of the machine, KINGREAL CEILING MACHINERY team works strictly in accordance with the standards. To provide customers with professional and high-quality machines, in order to fulfill this promise, KINGREAL CEILING MACHINERY has subdivided the work into every step.
※ Quality certified
KINGREAL CEILING MACHINERY has passed ISO9000 certification and has the ability of ISO9000 quality system management. It has also passed the international CE certificate certification.
Customer Visit -- Baffle Ceiling Machine
It is such a delight to have friends coming from afar. KINGREAL CEILING MACHINERY warmly welcomes customers to visit KINGREAL CEILING MACHINERY factory and communicate with us!
FAQ About Baffle Ceiling Machine
1/What is baffle ceiling machine?
2/How does baffle ceiling machine work?
3/What's the advantages of baffle ceiling machine？
4/How to improve the quality of baffle ceiling machine?
5/How to choose a baffle ceiling machine?
Are you a manufacturer?
Yes, KINGREAL Ceiling Machinery is a professional sheet metal processing machines manufacturer, we are an OEM. We have been focusing on the field of machine manufacturing for more than 20 years.How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.What's your Warranty ？
12 months except human error, during which all parts damaged because of quality problem will be changed for free. Parts that are out of warranty will be provided in factory price.What's your delivery Time ？
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, Manual book and video is provided to show how to install and operate.
